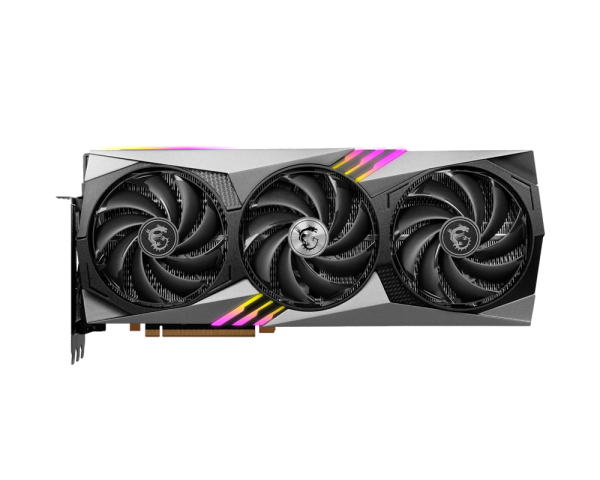

GeForce RTX? 4080 16GB GAMING X TRIO
Boost Clock / Memory Speed
- 2595 MHz / 22.4 Gbps
- 16GB GDDR6X

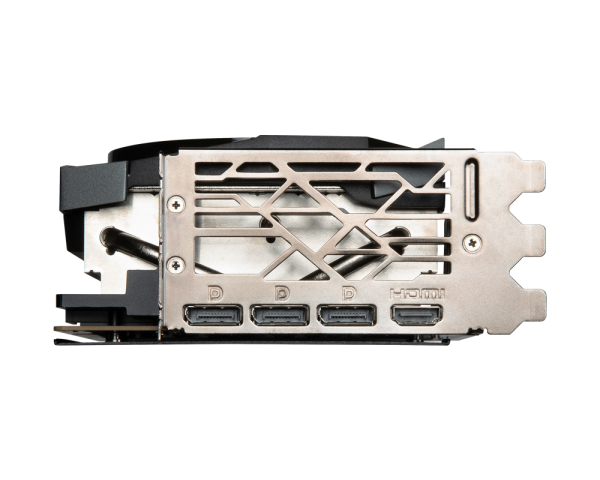

- DisplayPort x 3 (v1.4a)
HDMI? x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI? 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0:?Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate:?Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe:?A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control:?Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
SPECIFICATIONS
| Graphics Processing Unit | NVIDIA? GeForce RTX? 4080 16GB |
| Interface | PCI Express? Gen 4 |
| Core Clocks | TBD |
| Cuda Cores | 9728 Units |
| Memory Speed | 22.4 Gbps |
| Memory | 16GB GDDR6X |
| Memory Bus | 256-Bit |
| Output | DisplayPort x 3 (v1.4a) HDMI? x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
| HDCP Support | Y |
| Power Consumption | TBD |
| Power Connectors | 16-Pin x 1 |
| Recommeneded PSU | 850 W (Min.750 W) |
| Card Dimension (mm) | 337 x 140 x 67 mm |
| Weight (Card / Package) | 1876 g / 2816 g |
| Direct X Version Support | 12 Ultimate |
| Open GL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-Sync Technology | Y |
| VR Ready | Y |
| Digital Max Resolution | 7680 x 4320 |
