🛍️ Product Name

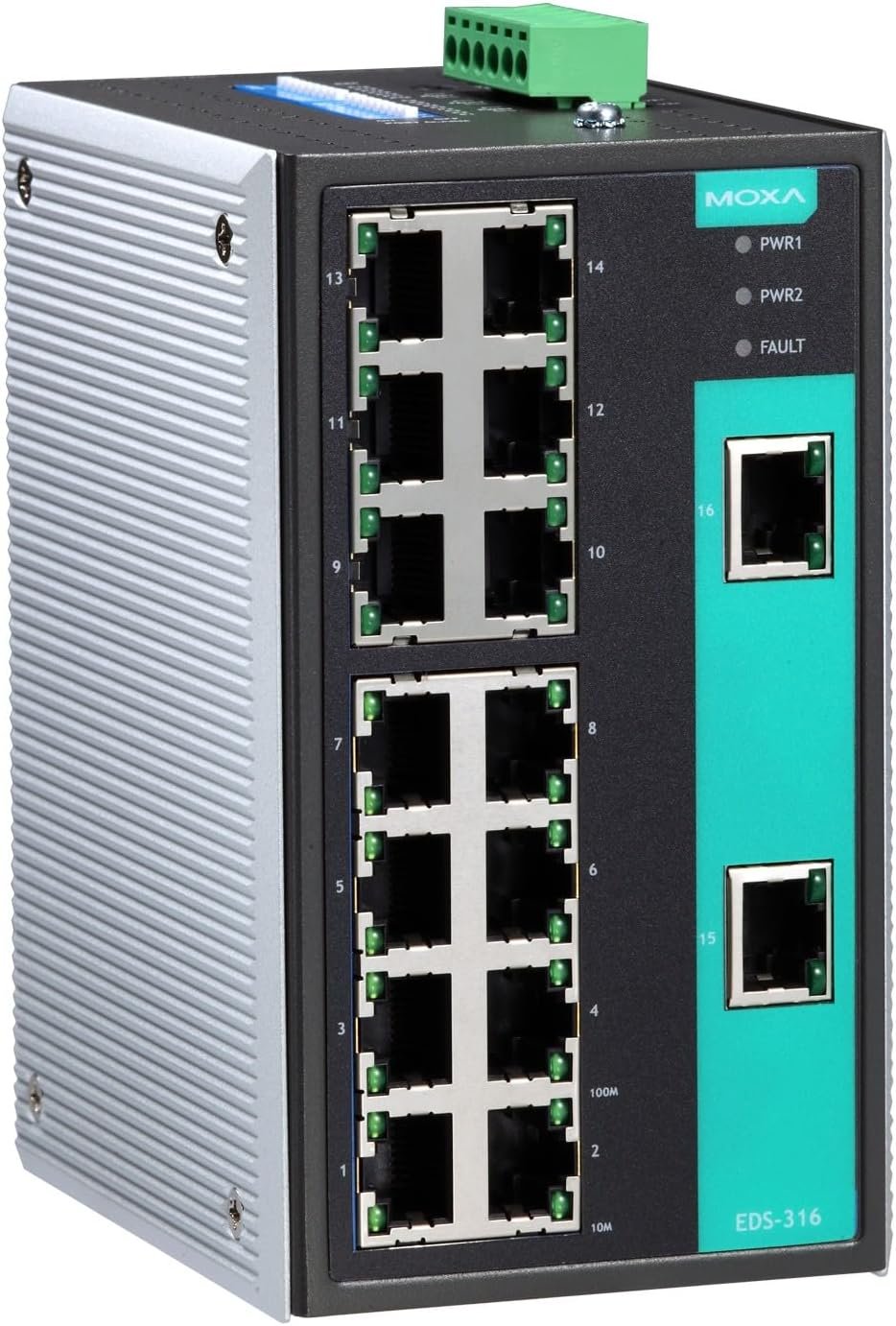

MOXA EDS-316 V2.3.0 Unmanaged Ethernet Switch – 16 Ports, DIN-Rail Mount, -40 to 75°C, Redundant Power Input
📦 Product Overview
The MOXA EDS-316 V2.3.0 is a 16-port unmanaged Ethernet switch built for industrial automation and mission-critical networking. It features a rugged metal housing, redundant power inputs, and a built-in relay output to alert users of power failures or port disconnections. Designed for harsh environments, it supports a wide operating temperature range and complies with industrial safety standards including Class I Div. 2 and ATEX Zone 2.
🌟 Top Highlights
🔌 16 Fast Ethernet Ports – Reliable 10/100 Mbps connectivity
🛡️ Relay Output Alarm – Alerts for power or port failures
🌡️ Wide Temperature Range – Operates from -40 to 75°C
🔁 Redundant Power Inputs – Dual 12–48 VDC for uninterrupted uptime
🧱 DIN-Rail Mountable – Compact design for industrial cabinets
📜 Certifications – UL, CE, FCC, Class I Div. 2, ATEX Zone 2
📐 Technical Details
| Specification | Details |
|---|---|
| Model | EDS-316 V2.3.0 |
| Ports | 16 × 10/100 Mbps RJ45 |
| Switch Type | Unmanaged |
| Relay Output | 1 × relay output for power/port failure alarm |
| Input Voltage | 12–48 VDC (redundant dual inputs) |
| Operating Temperature | -40 to 75°C (–T model) |
| Mounting | DIN-Rail |
| Housing | Metal, IP30-rated |
| Certifications | UL, CE, FCC, Class I Div. 2, ATEX Zone 2 |
| Dimensions | 53.6 × 135 × 105 mm |
| Weight | Approx. 770 g |
💡 Why You Should Buy It
✅ Industrial-grade reliability with wide temperature support
✅ 16-port density for scalable Ethernet expansion
✅ Relay alarms and redundant power for critical uptime
✅ Certified for hazardous locations and harsh conditions
🎯 Recommended Use Cases
➤ Factory and process automation
➤ Oil & gas and mining environments
➤ Transportation and smart infrastructure
➤ Industrial control cabinets and substations
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Backed by MOXA’s standard limited warranty
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via MOXA support channels and authorized distributors
👉 Call to Action
Deploy the MOXA EDS-316 V2.3.0 for rugged, reliable Ethernet switching in your toughest environments.
