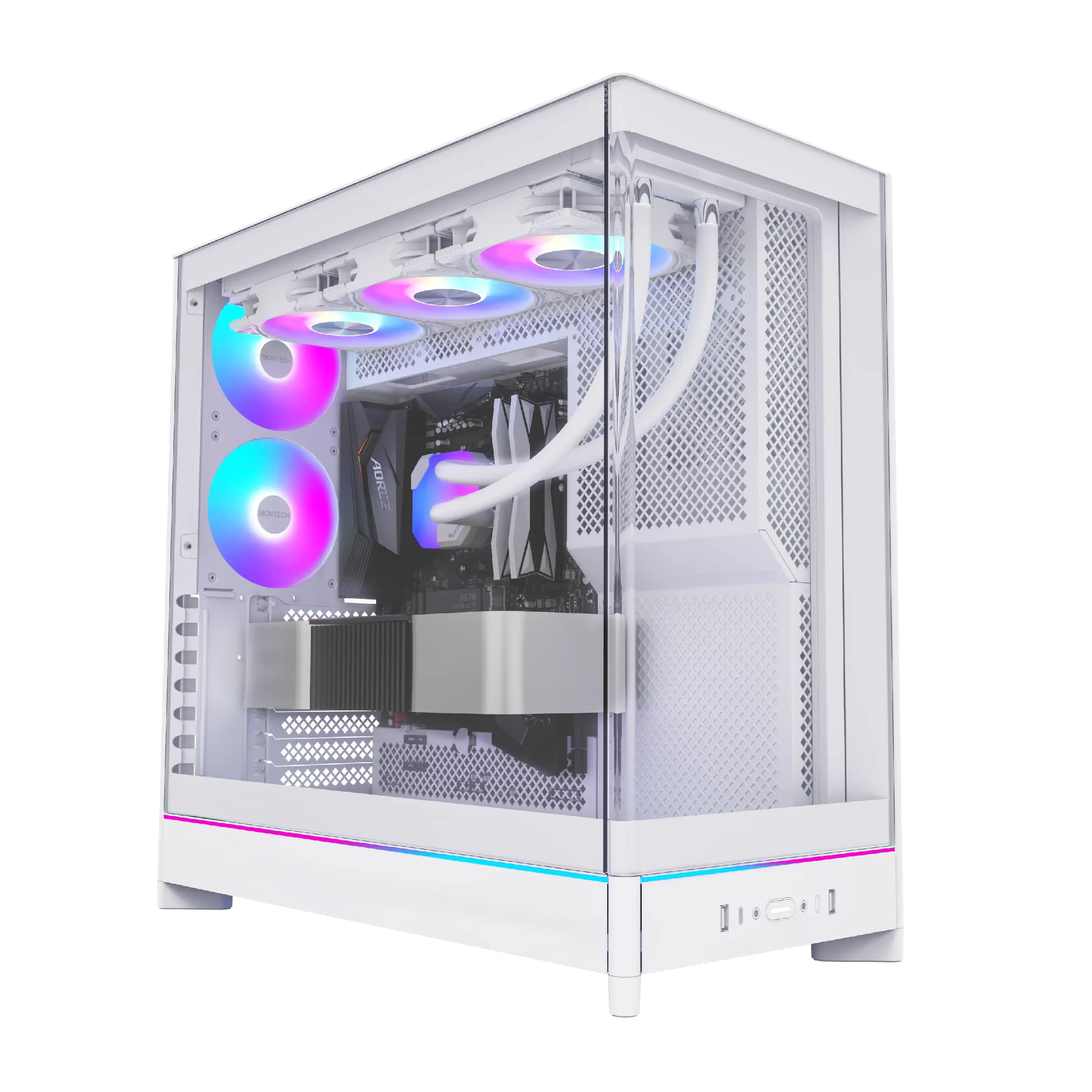

MONTECH HS02 Pro White – ATX Mid‑Tower Chassis with Curved Tempered‑Glass Front & 5× 120 mm ARGB Fans
The MONTECH HS02 Pro White is a uniquely stylish and functional ATX mid-tower case built for modern system showcases. It features an elegant 8° curved tempered-glass front panel and reversible orientation to place the side glass panel on either side. Its innovative “sink‑in” interior layout places three ARGB intake fans at the bottom and two exhaust fans at the rear, promoting efficient chimney-style airflow. It supports back-connect motherboards, facilitates clean cable routing, and includes rotatable PCIe slots for vertical GPU installation—all while delivering powerful RGB aesthetics right out of the box.
SPECIFICATIONS
Form Factor
-
Mid-Tower
Motherboard Support
-
ATX
-
Micro-ATX
-
Mini-ITX
-
Back-connect motherboard compatible
Dimensions
-
Case Size: 480 mm (L) × 240 mm (W) × 480 mm (H)
Drive Bays
-
2 × 3.5″ HDD
-
4 × 2.5″ SSD
Expansion Slots
-
7 Standard PCIe slots
-
Supports vertical GPU mounting
Cooling System
-
Pre-installed Fans:
-
3 × 120 mm ARGB fans (bottom)
-
2 × 120 mm ARGB fans (rear)
-
-
Fan Mounting Support:
-
Top: 3 × 120 mm or 2 × 140 mm
-
Rear: 2 × 120 mm
-
Bottom: 3 × 120 mm
-
Radiator Support
-
Top: up to 360 mm
-
Bottom: up to 240 mm
-
Rear: up to 120 mm
Clearance
-
CPU Cooler Height: up to 175 mm
-
GPU Length: up to 420 mm
-
PSU Length: up to 200 mm
Front I/O Ports
-
2 × USB 3.0
-
1 × USB Type-C
-
1 × Audio-out
-
1 × Mic-in
-
Power, Reset, RGB control buttons
Design Features
-
8° angled curved tempered glass front panel
-
Reversible chassis layout (left or right side panel)
-
“Sink-in” style motherboard tray for clean side view
-
Rotatable PCIe slots for vertical GPU setup
-
Integrated ARGB controller with multiple lighting modes
-
Magnetic dust filter (bottom)
-
Removable dust filters (front, top, bottom)
-
Tool-less side panel design
-
Chimney-style airflow system (bottom-to-top)
Power Supply Support
-
ATX or SFX PSU
-
Mounted at the bottom
