JONSBO ZB240R – White Reverse-JONSBO-ZB-240WR-WH

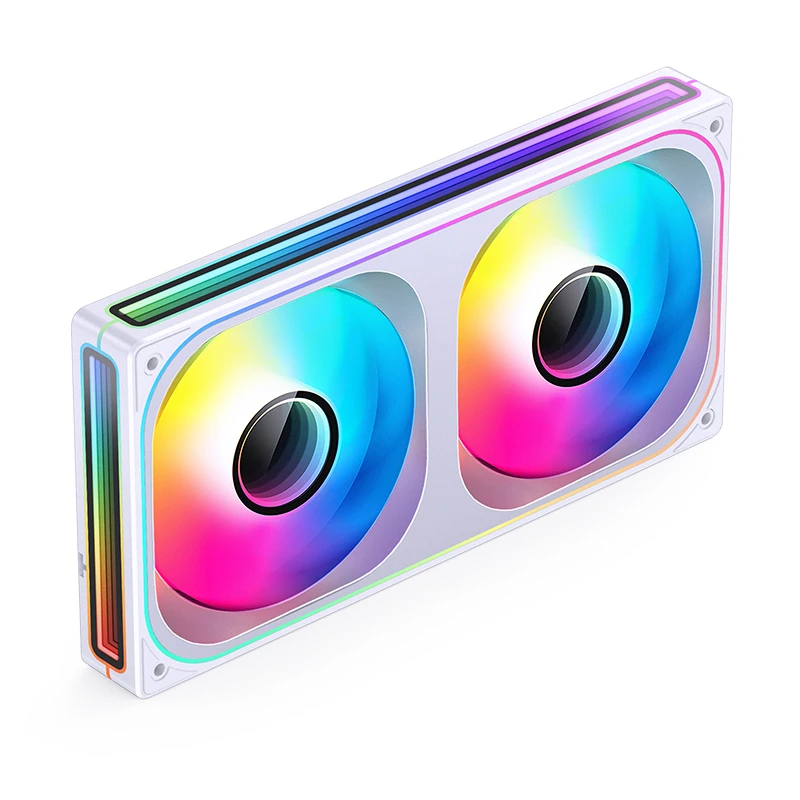

The JONSBO ZB-240WR-WH is a 240mm case fan unit that combines two 120mm reverse-blade fans into one sleek white single-frame design. It features beautiful four-sided infinity mirror ARGB lighting for stunning visual effects. The reverse-blade setup ensures optimal airflow while showcasing the lighting from the inside of the case. With only two cables—one for fan speed and one for lighting—it simplifies installation and cable management. Ideal for clean, high-performance gaming or workstation builds.

SPECIFICATIONS

• Product Type: Case fan (not a CPU cooler)

• Frame Size: 240mm (single integrated frame with 2 × 120mm fans)

• Dimensions: 240 mm (length) × 123 mm (width) × 28 mm (thickness)

• Fan Speed: 700 to 2400 RPM (adjustable via PWM control)

• Airflow: Up to 65.26 CFM (cubic feet per minute)

• Static Pressure: Up to 3.20 mm H₂O

• Noise Level: 20.3 to 36.6 dB(A)

• Lighting Type: ARGB with four-sided infinity mirror effect

• Fan Power Input: 12V, 0.37A (about 4.44 watts)

• LED Power Input: 5V, 1.16A (about 5.80 watts)

• Bearing Type: Hydraulic bearing for smooth operation

• Lifespan (MTTF): 20,000 hours at 25°C

• Connectors:

  • 4-pin PWM for fan speed

  • 3-pin ARGB for lighting

• Color: White
