JONSBO D32 PRO White-JONSBO-D32 PRO-WH

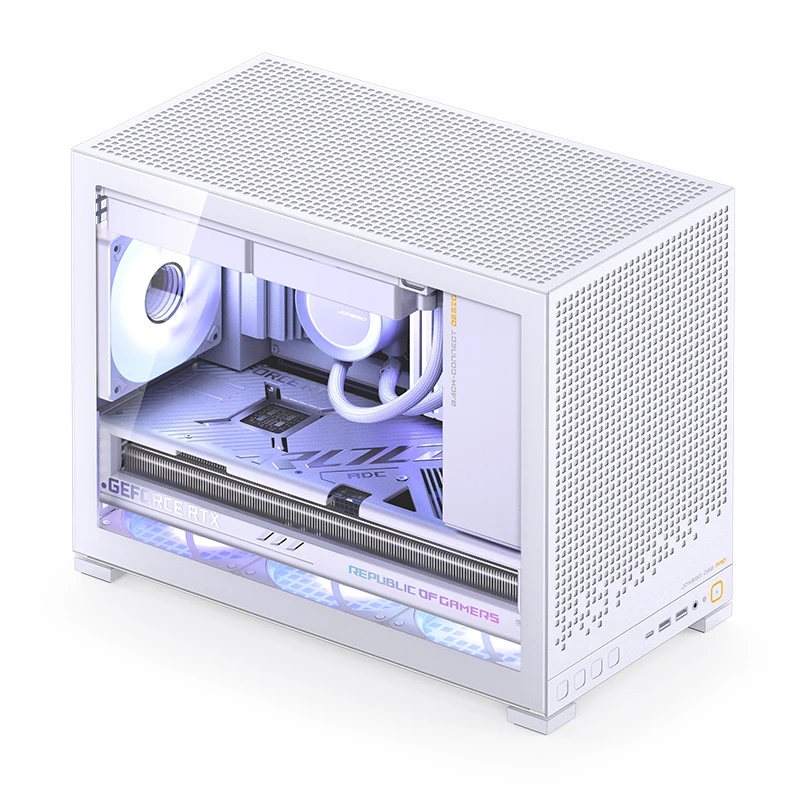

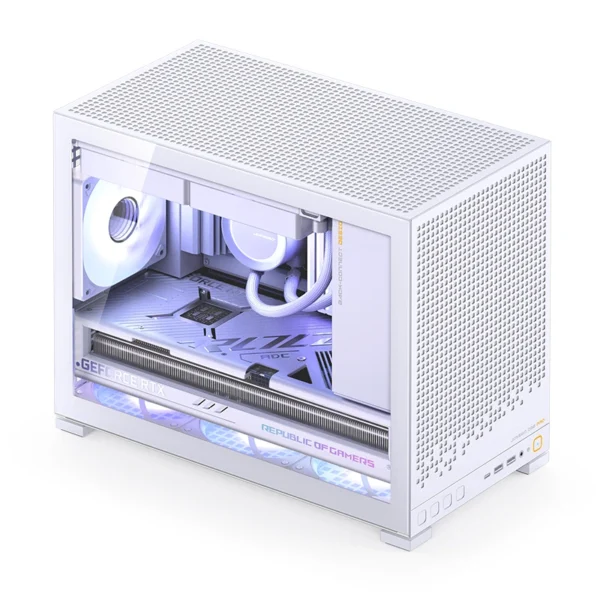

The D32 PRO White is a sleek, tempered‑glass micro‑ATX PC case designed for modern builds. It supports both standard and “back‑connect” motherboards, letting you choose vertical or horizontal GPU setups. With partitions you can remove, you have flexibility in GPU and PSU lengths. Includes USB‑C on the front panel and accommodates both 240 mm AIO coolers and tall air coolers. It’s ideal for clean, minimalist desktops without compromising on performance.

SPECIFICATIONS

• Case Type: Micro‑ATX desktop (24 L volume)

• Color: White with tempered‑glass side panel

• Material: SPCC steel

• Dimensions:

  • Without feet: 384 × 207 × 302 mm

  • Including feet: 396 × 207 × 314 mm

• Motherboard Support: Mini‑ITX, Micro‑ATX, and back‑connect Micro‑ATX (switchable modes)

• Drive Bays:

  • Up to 4 × 2.5″ SSD

  • Up to 2 × 3.5″ HDD (shared with SSD mounts)

• Front I/O Ports: 2 × USB‑A (USB 3.2 Gen1), 1 × USB‑C (USB 3.2 Gen2), headphone and mic jacks

• Cooling Support:

  • Top: 2 × 120 mm or 2 × 140 mm fans or up to 240 mm AIO radiator

  • Bottom: up to 3 × 120 mm or 2 × 140 mm fans

  • Rear: 1 × 120 mm fan included

• GPU Clearance: Up to 365 mm (with compatible motherboard)

• CPU Cooler Height Limit:

  • A‑mode: 170 mm (Intel), 169 mm (AMD)

  • B‑mode: 164 mm (Intel), 163 mm (AMD)

• PSU Clearance:

  • A‑slot: max 150 mm (recommended ≤140 mm)

  • B‑slot: max 170 mm (recommended ≤160 mm)

• Weight: Net ~4.6 kg; gross ~5.8 kg

• Expansion Slots: 4

• Radiator Support: Up to 240 mm on top

• Front Fan Included: 1 × 120 mm rear
