JONSBO D32 PRO Black-JONSBO-D32 PRO-BK

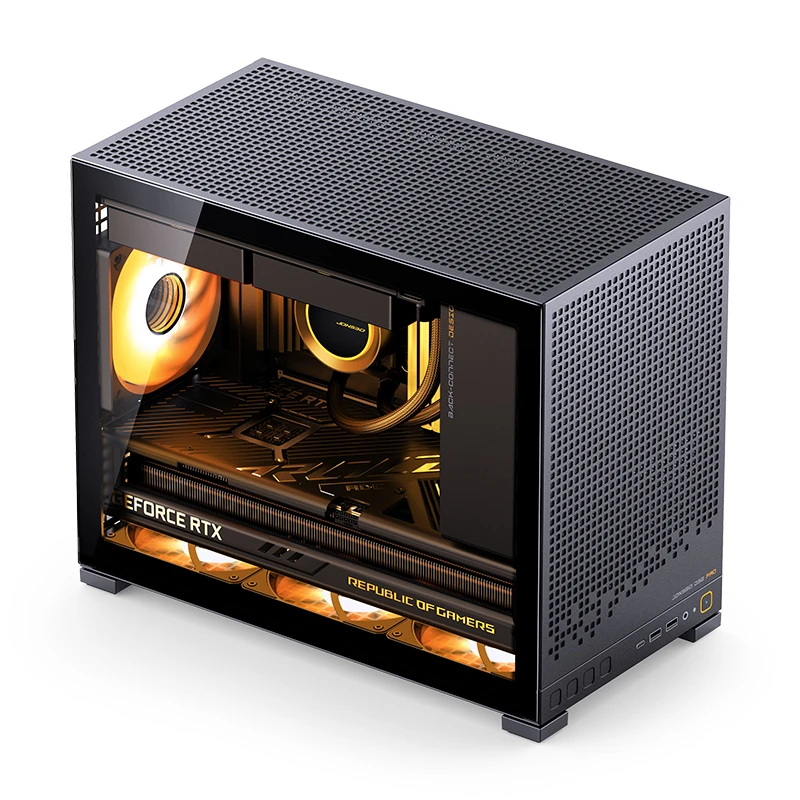

A compact, cube-style black Micro‑ATX case featuring full-mesh steel panels and a tempered glass side. It supports both traditional and back‑connect motherboard orientations (A/B mode) for flexible GPU placement (vertical or standard). Includes a built-in top carry handle, supports large GPUs, ATX/SFX power supplies, 240 mm AIO coolers, and tall CPU air coolers—all within a space-efficient 24 L volume.

SPECIFICATIONS

• Case Dimensions (with feet): 396 × 207 × 314 mm

• Case Dimensions (without feet): 384 × 207 × 302 mm

• Volume: Around 24 liters

• Material: Steel (SPCC) with tempered glass side panel

• Net Weight: Approximately 4.6 kg

• Motherboard Support: Micro-ATX and Mini-ITX

• Drive Bays:

  • Up to 4 × 2.5″ SSD

  • Up to 2 × 3.5″ HDD (shared mounting)

• Front I/O Ports:

  • 2 × USB 3.2 Gen1 Type-A

  • 1 × USB 3.2 Gen2 Type-C

  • 1 × Audio combo jack

• Power Supply Support:

  • ATX, SFX, or SFX-L

  • Supports PSU up to 200 mm depending on GPU configuration

• GPU Clearance: Up to 365 mm

• CPU Cooler Clearance:

  • A-mode: Up to 170 mm

  • B-mode: Up to 164 mm

• Cooling Options:

  • Top: 2 × 120 mm or 2 × 140 mm fans

  • Rear: 1 × 120 mm fan

  • Bottom: 3 × 120 mm or 2 × 140 mm fans

• Radiator Support: Top mount supports 240 mm radiator

• Expansion Slots: 4 full-height slots

• Design Features:

  • Built-in top carry handle

  • Full mesh for airflow
