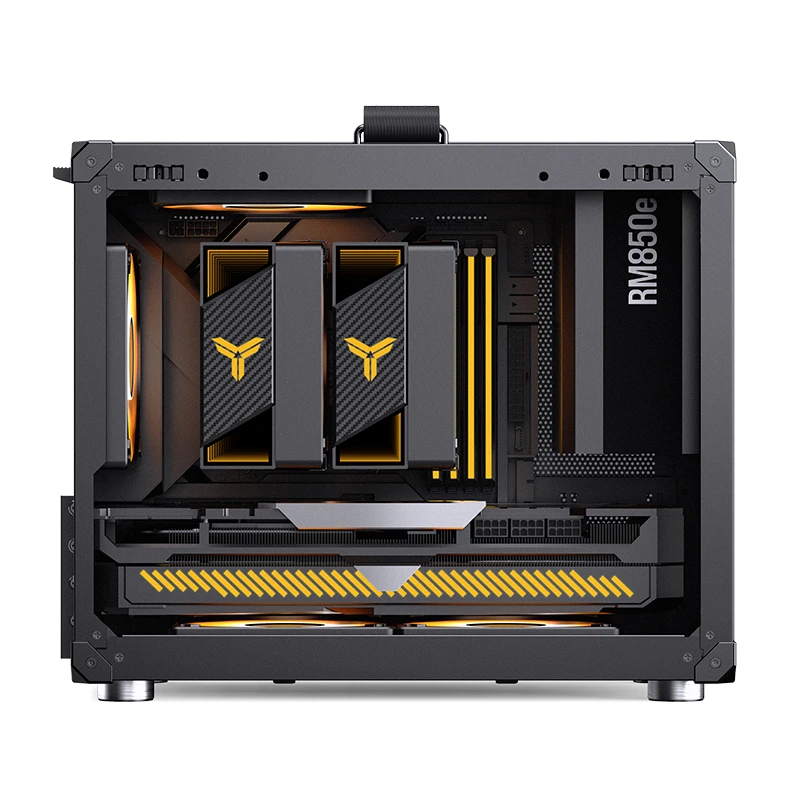

JONSBO C6 MAX Black-JONSBO-C6 MAX-BK
A compact, cube-shaped black PC case supporting Micro‑ATX and Mini‑ITX motherboards. It features a mesh design on all sides for optimal airflow, and includes a built-in carrying handle on top. Ideal for users seeking a blend of portability, cooling efficiency, and a clean, modern aesthetic.
SPECIFICATIONS
-
Outer Dimensions: 202 mm (width) × 349 mm (depth) × 295 mm (height)
-
Volume & Weight: Approximately 20.8 L; net weight ~3.45 kg
-
Material: 0.7 mm steel mesh chassis on all sides
-
Motherboard Support: Mini‑ITX and Micro‑ATX
-
Drive Bays: 1 × 2.5″ SSD, 1 × 3.5″ HDD
-
Front I/O Ports: USB‑C, USB‑A 3.0, combined audio/mic jack
-
Power Supply Support: ATX PSUs from 140 mm up to 220 mm
-
CPU Cooler Clearance: Up to 170 mm tall
-
Graphics Card Clearance: Supports GPUs up to 335 mm long
-
Cooling Options:
– Top: two 120 mm fans or one 140 mm
– Bottom: two 120 mm fans or HDD
– Rear: one 120 mm fan -
Expansion Slots: 4 (for full-length GPU support)
-
Carry Handle: Integrated mesh handle for portability
