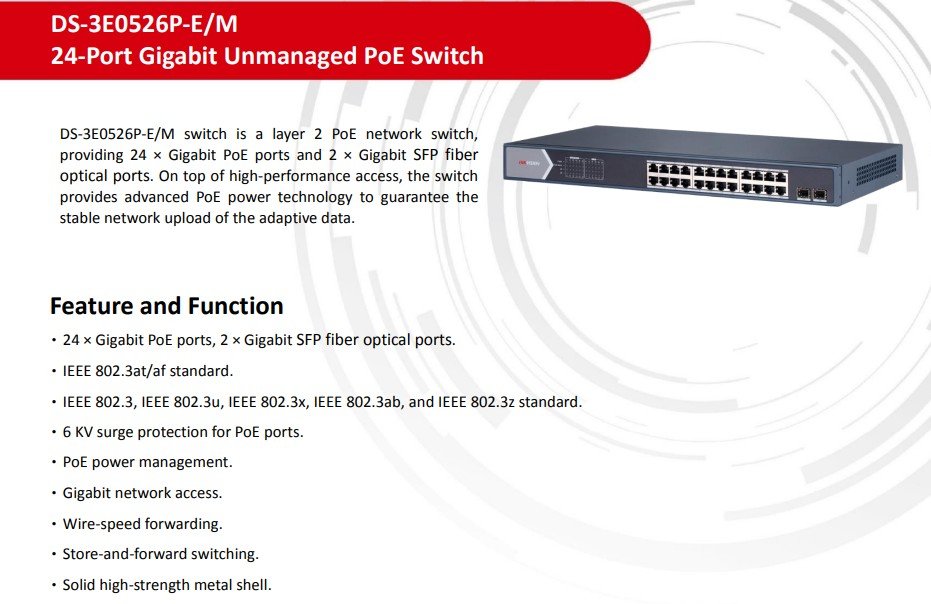

Hikvision DS-3E0526P-E/M 24-Port Gigabit Unmanaged PoE Switch – 24× RJ45 PoE, 1× RJ45 Uplink, 1× SFP Uplink, 120W PoE Budget
📦 Product Overview
The Hikvision DS-3E0526P-E/M is a Layer 2 unmanaged PoE switch designed for IP surveillance and network deployments. It features 24 Gigabit PoE ports, 2 uplink ports (1 RJ45 + 1 SFP), and supports IEEE 802.3af/at standards. With 6kV surge protection and a fanless metal chassis, it ensures reliable, silent operation in demanding environments.
🌟 Top Highlights
🔌 24× Gigabit PoE Ports – 10/100/1000 Mbps auto-negotiation
📶 2× Uplink Ports – 1 RJ45 + 1 SFP for flexible backbone
⚡ 120W PoE Budget – Supports IEEE 802.3af/at
🛡️ 6kV Surge Protection – Reliable power and data transmission
🔧 Plug-and-Play – No configuration required
📐 Technical Details
| Specification | Details |
|---|---|
| Model | DS-3E0526P-E/M |
| PoE Ports | 24 × 10/100/1000 Mbps RJ45 (PoE) |
| Uplink Ports | 1 × RJ45 + 1 × SFP |
| PoE Standard | IEEE 802.3af/at |
| Max PoE Power | 30W per port |
| Total PoE Budget | ≤120W |
| Switching Method | Store-and-forward |
| Surge Protection | 6kV on all ports |
| Shell | Metal, fanless design |
| Dimensions | 440 × 44 × 220.8 mm |
| Weight | Net: 2.92 kg, Gross: 4.12 kg |
| Operating Temp | 0°C to 45°C |
💡 Why You Should Buy It
✅ Ideal for medium-scale IP surveillance deployments
✅ Reliable surge protection and silent operation
✅ Flexible uplink options with SFP and RJ45
✅ No setup required — plug and play simplicity
🎯 Recommended Use Cases
➤ Office and retail PoE deployments
➤ IP camera networks and NVR backbones
➤ Remote access points and IP phones
➤ Network edge expansion
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Expand your PoE infrastructure with Hikvision’s 24-port gigabit switch — reliable, scalable, and secure.
