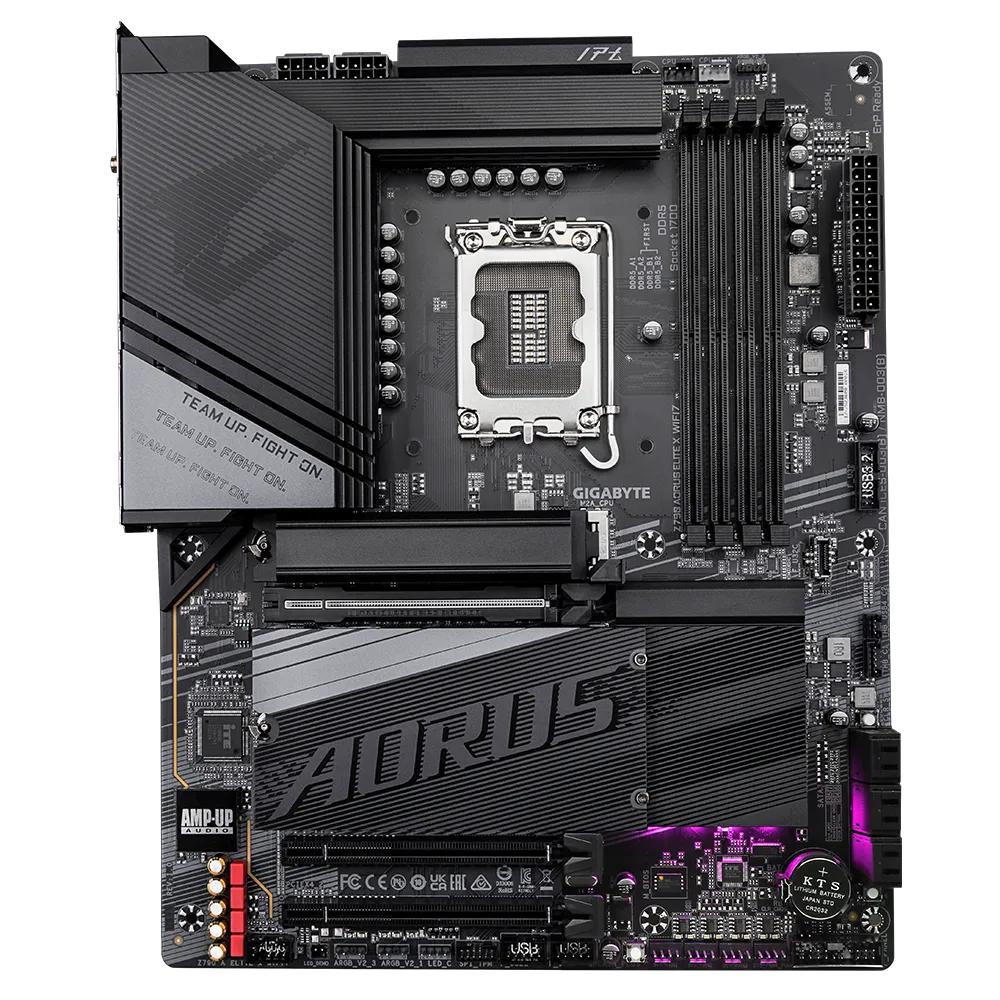

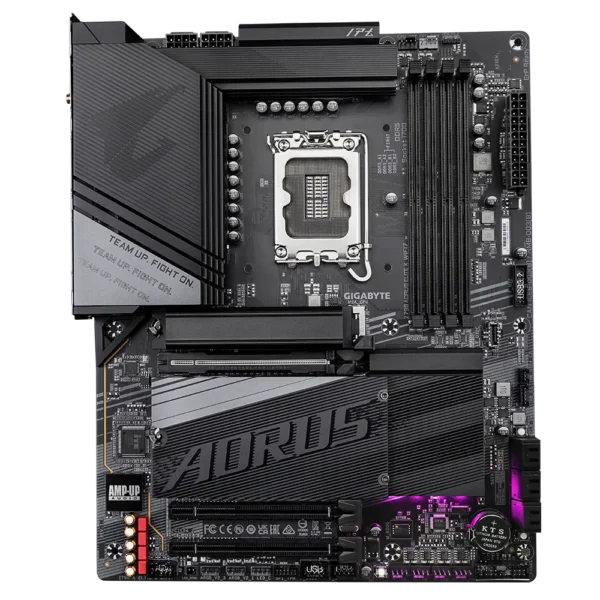

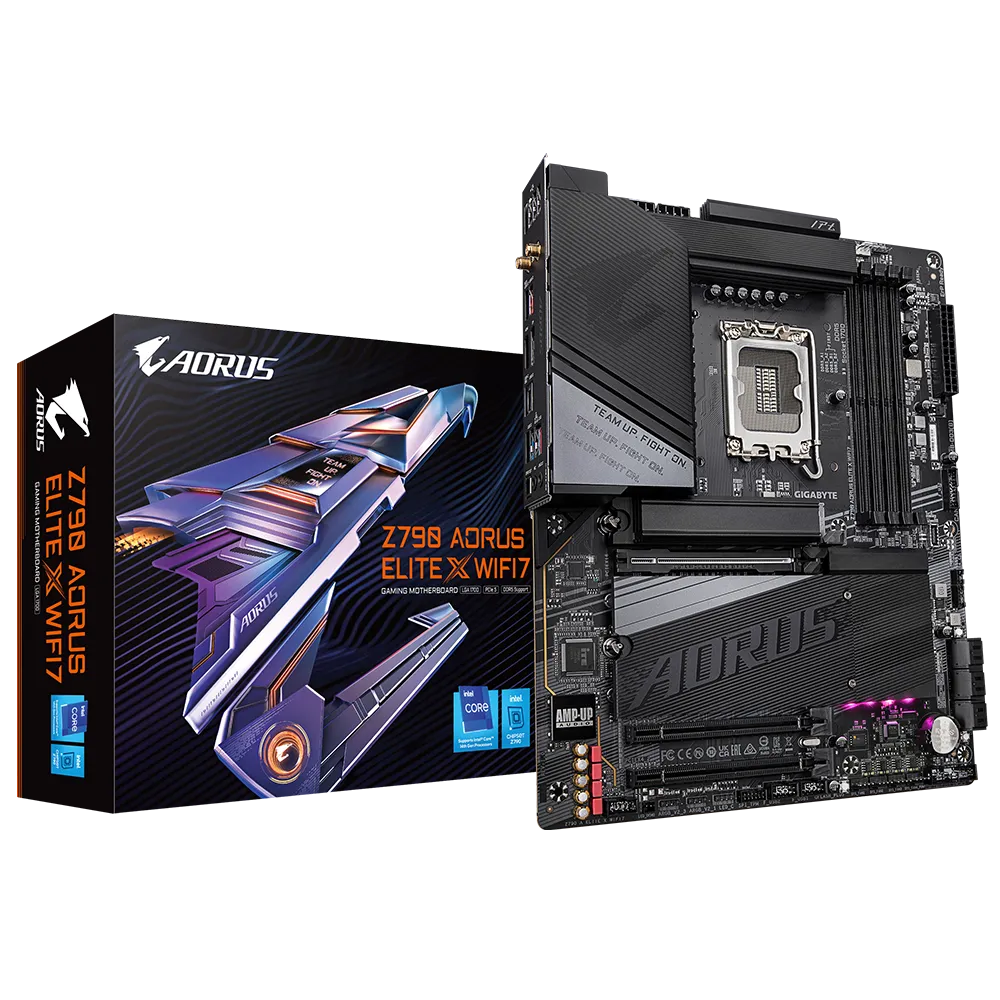

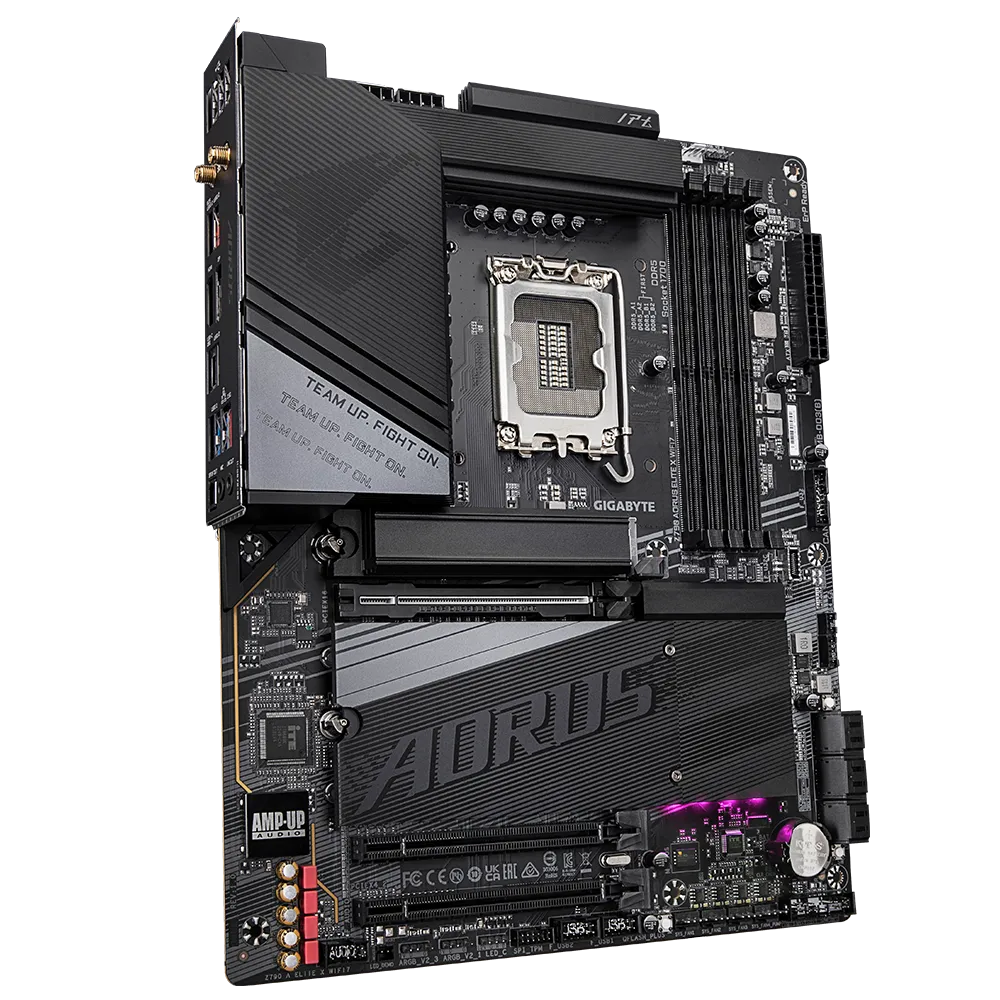

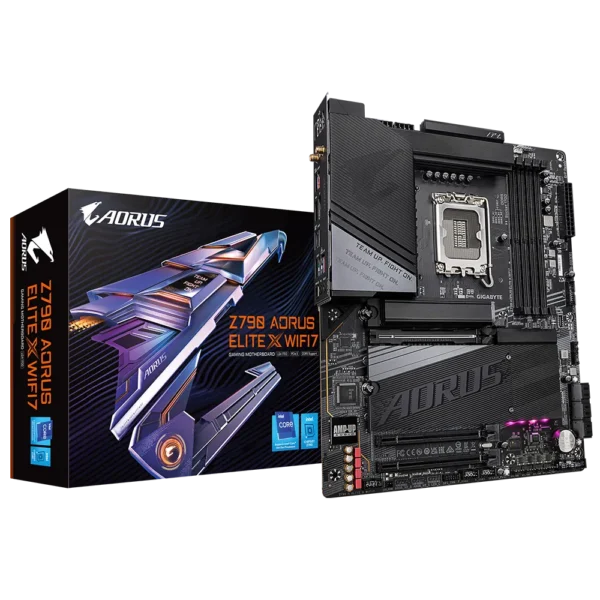

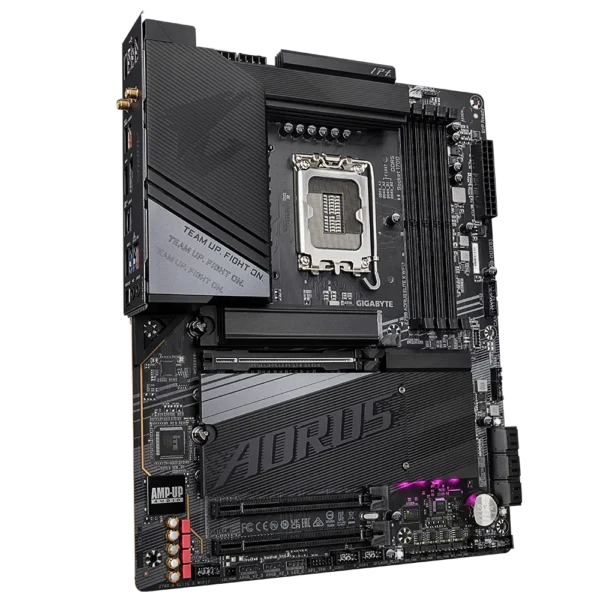

Z790 AORUS ELITE X WIFI7
- Supports Intel? Core? 14th and 13th processors
- Digital twin 16+1+2 phases VRM solution
- Dual Channel DDR5?4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X? PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click?M.2 heatsinks with screwless design
- EZ-Latch Plus?M.2 slots with quick release design
- UC BIOS?User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage?4*PCIe 4.0 x4 M.2 slots
- Efficient Overall Thermal?VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking?2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

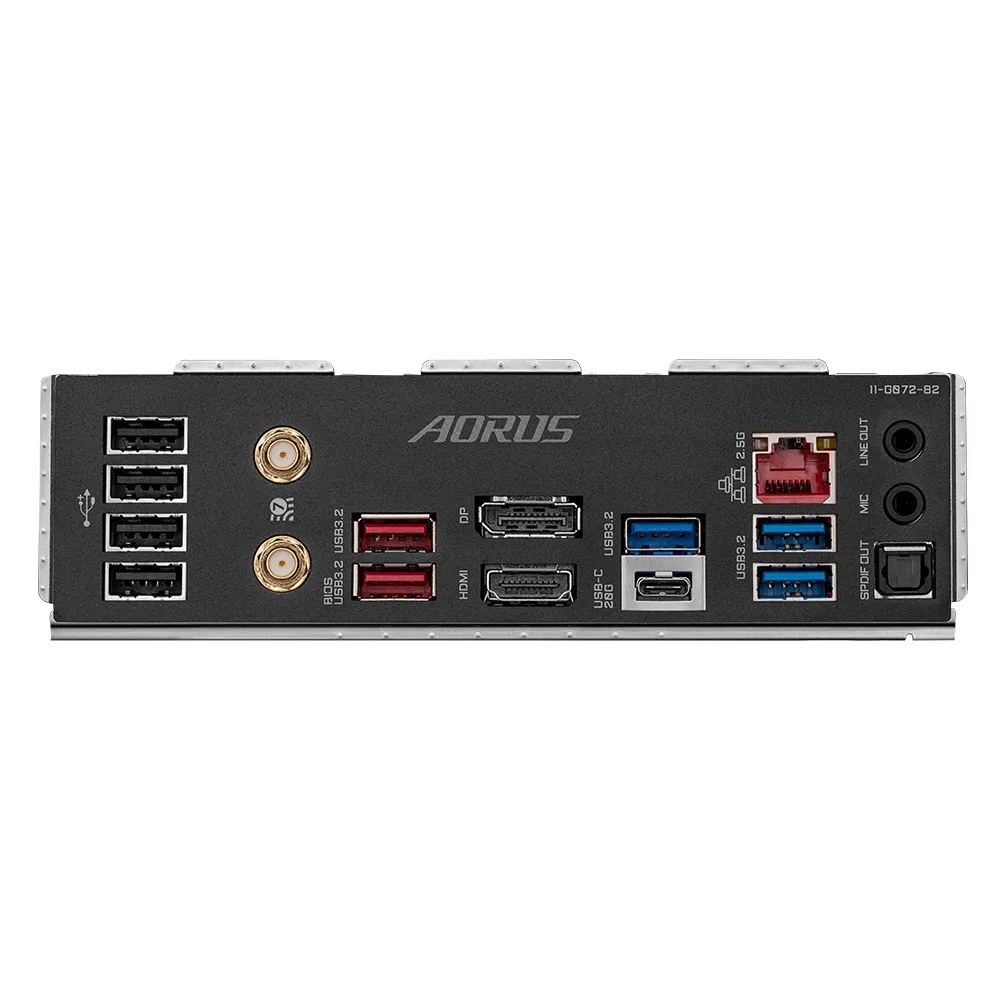

- Extended Connectivity?DP, HDMI, Front USB-C? 10Gb/s, Rear USB-C? 20Gb/s
- Precision Audio?ALC1220 & Audiophile Grade Capacitors
SPECIFICATIONS
| Model | |
| Brand | GIGABYTE |
| Model | ELITE X |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | Support for the 13th and 12th Generation Intel? Core?, Pentium? Gold and Celeron? Processors* |
| Chipsets | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 x DDR5 DIMM sockets |
| Memory Standard |
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.
|
| Maximum Memory Supported | up to 192 GB |
| Channel Supported | Dual channel memory architecture |
| Expansion Slots | |
| PCI Express x16 |
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
|
| Storage Devices | |
| SATA 3Gb/s | 6 x SATA 6Gb/s connectors |
| SATA RAID |
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
|
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics |
| Onboard Audio | |
| Audio Channels | 2/4/5.1/7.1-channel |
| Audio Chipset | Realtek ALC1220-VB codec |
| Onboard LAN | |
| LAN Chipset | Intel 2.5Gbps LAN |
| Max LAN Speed | 2.5 Gbps/1 Gbps/100 Mbps |
