Gigabyte X570S AORUS PRO AX V 1.1

$699.00 SGD

Out of stock

Gigabyte X570S AORUS PRO AX V 1.1
Gigabyte X570S AORUS PRO AX V 1.1
$699.00 SGD

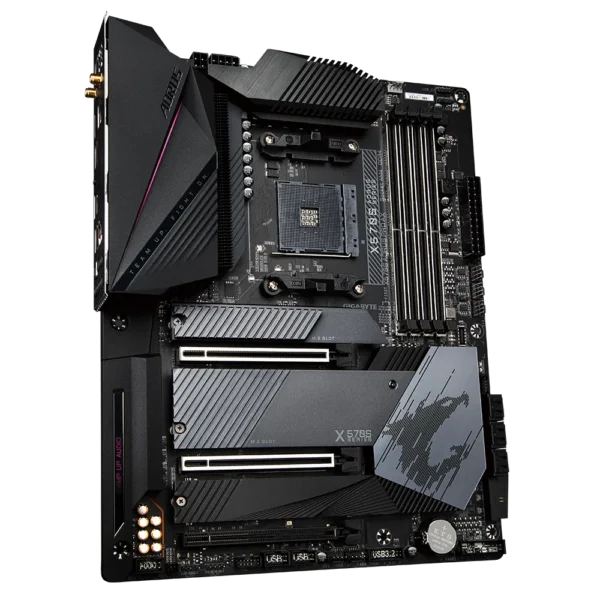

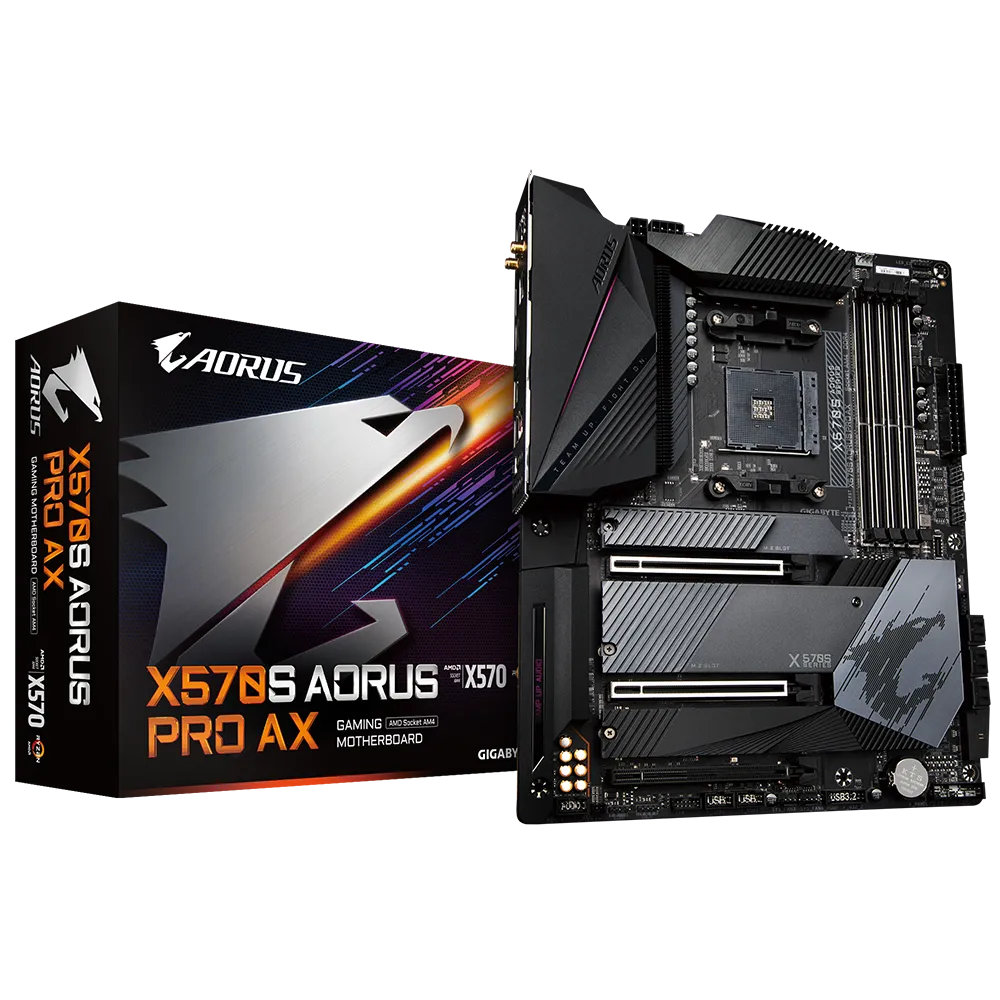

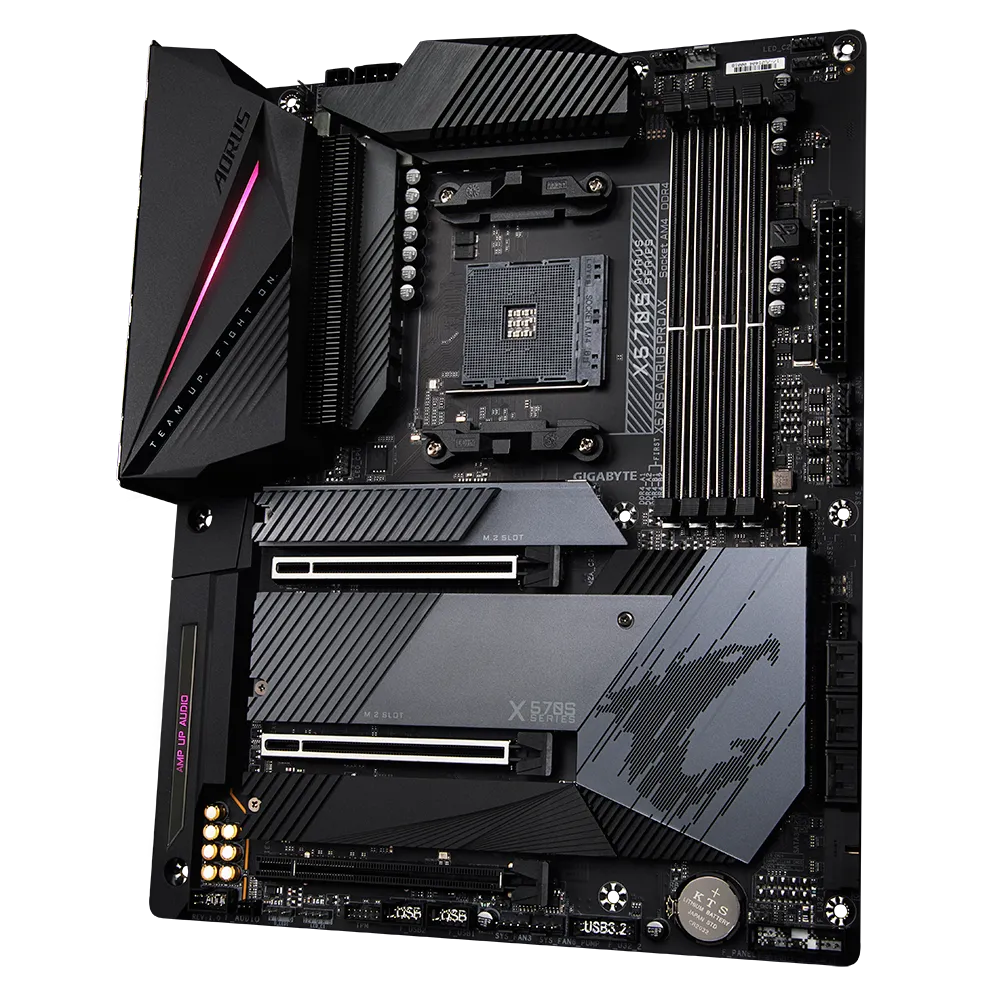

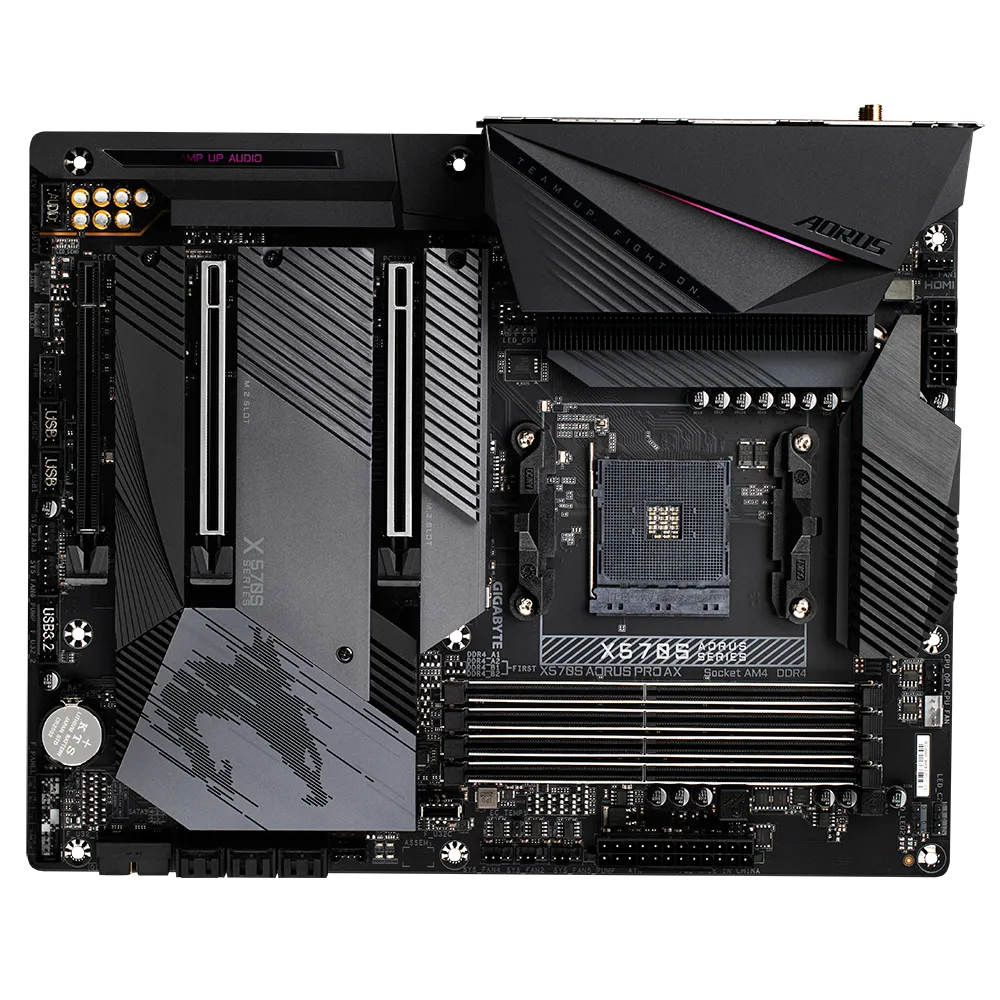

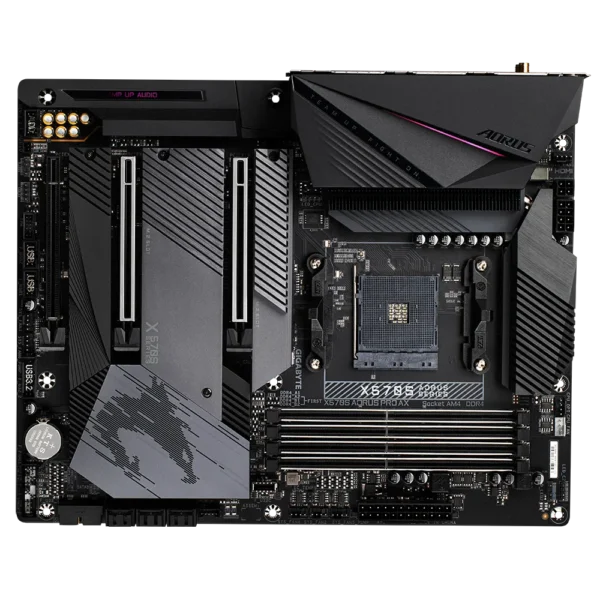

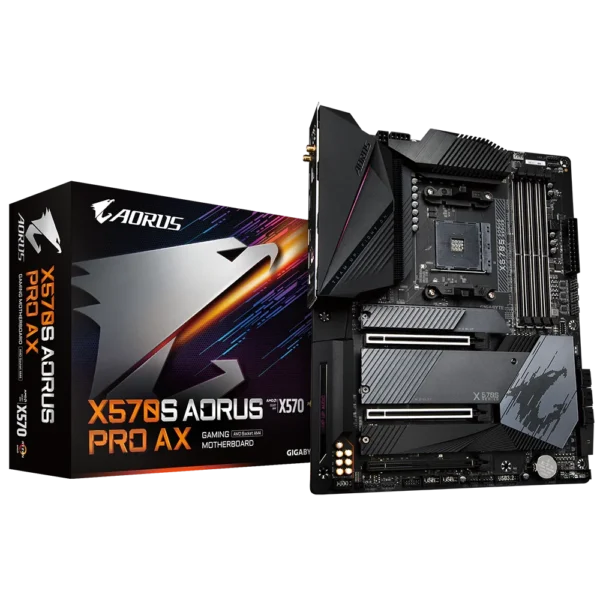

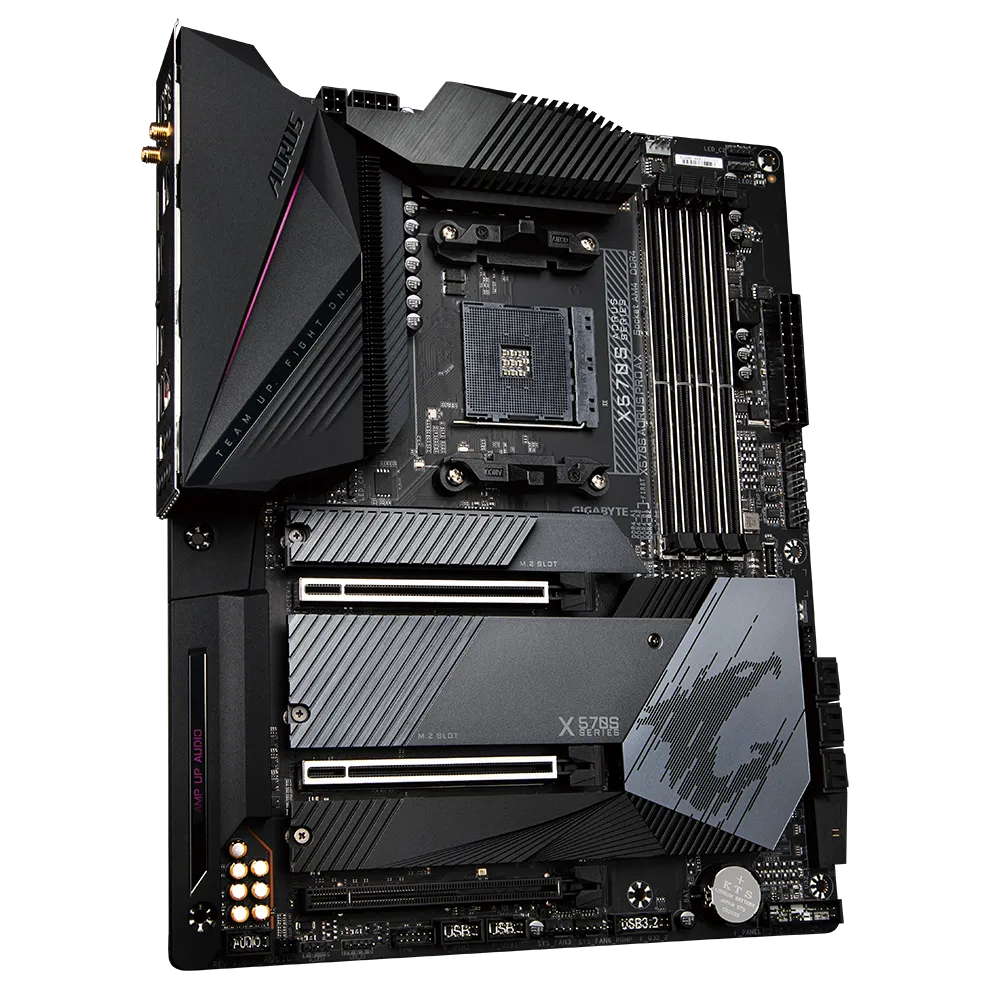

X570S AORUS PRO AX (rev. 1.1)

  • Supports AMD Ryzen? 5000 Series/ Ryzen? 5000 G Series/ Ryzen? 4000 G Series/ Ryzen? 3000 Series/ Ryzen? 3000 G Series/ Ryzen? 2000 Series/ Ryzen? 2000 G Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings
  • Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
  • Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II and M.2 Thermal Guard III
  • AMD?WiFi 6E 802.11ax & BT 5.2
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • Blazing Fast Intel??2.5GbE LAN with cFosSpeed
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C??delivers up to 20Gb/s transfer speeds
  • AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS

CPU AMD Socket AM4, support for: AMD Ryzen? 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen? 4000 G-Series Processors/ AMD Ryzen? 3000 Series Processors/ AMD Ryzen? 3000 G-Series Processors/ AMD Ryzen? 2000 Series Processors/ AMD Ryzen? 2000 G-Series Processors
Chipset AMD X570
Memory
  1. AMD Ryzen? 5000 Series processors:
    Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  2. AMD Ryzen? 4000 G-Series processors:
    Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. AMD Ryzen? 3000 Series processors:
    Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. AMD Ryzen? 3000 G-Series Processors/AMD Ryzen? 2000 Series Processors/ AMD Ryzen? 2000 G-Series Processors:
    Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses
  5. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  6. Dual channel memory architecture
  7. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  8. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  9. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096?2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB
For AMD Ryzen? 4000 G-Series Processors/AMD Ryzen? 3000 G-Series Processors/AMD Ryzen? 2000 G-Series Processors only.
Audio
  1. Realtek??ALC1220-VB Audio CODEC
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X??Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN Intel??2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel??Wi-Fi 6 AX200

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen? 5000 Series Processors/AMD Ryzen? 3000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen? 4000 G-Series Processors/AMD Ryzen? 2000 Series Processors support PCIe 3.0 x16 mode
  3. AMD Ryzen? 3000 G-Series Processors/AMD Ryzen? 2000 G-Series Processors support PCIe 3.0 x8 mode

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

  1. AMD Ryzen? 5000 Series Processors/AMD Ryzen? 3000 Series Processors support PCIe 4.0 x8 mode
  2. AMD Ryzen? 4000 G-Series Processors/AMD Ryzen? 2000 Series Processors support PCIe 3.0 x8 mode
  3. AMD Ryzen? 3000 G-Series Processors/AMD Ryzen? 2000 G-Series Processors do not support this slot.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 4.0*/3.0 x4 mode
    * For AMD Ryzen? 5000 Series Processors/AMD Ryzen? 3000 Series Processors only.
Multi-Graphics Technology
  1. Support forAMDQuad-GPU CrossFire? and 2-WayAMD CrossFire? technologies

For AMD Ryzen? 5000 Series Processors/AMD Ryzen? 4000 G-Series Processors/AMD Ryzen? 3000 Series Processors/AMD Ryzen? 2000 Series Processors only
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

  1. AMD Ryzen? 5000 Series Processors/AMD Ryzen? 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen? 4000 G-Series Processors/AMD Ryzen? 3000 G-Series Processors/AMD Ryzen? 2000 Series Processors/AMD Ryzen? 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

  1. Supporting PCIe 4.0*/3.0 x4/x2 SSDs
    * For AMD Ryzen? 5000 Series Processors/AMD Ryzen? 3000 Series Processors only.

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

  1. Supporting SATA and PCIe 4.0*/3.0 x4/x2 SSDs
    * For AMD Ryzen? 5000 Series Processors/AMD Ryzen? 3000 Series Processors only.

6 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
    * Refer to ?1-8 Internal Connectors,? for the installation notices for the M.2 and SATA connectors.

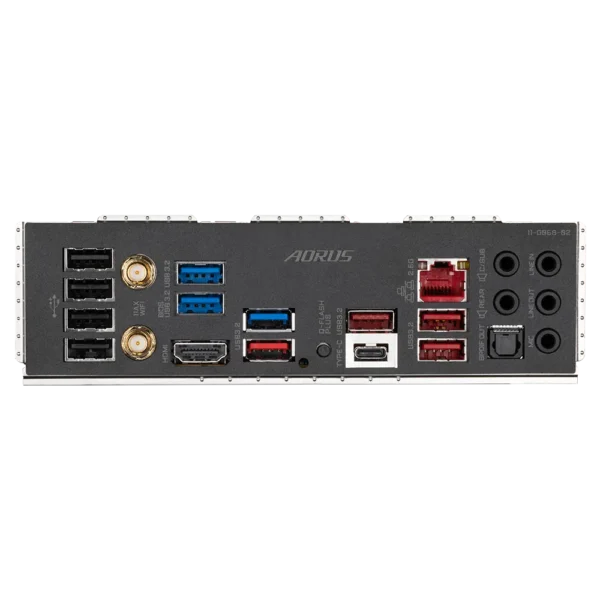

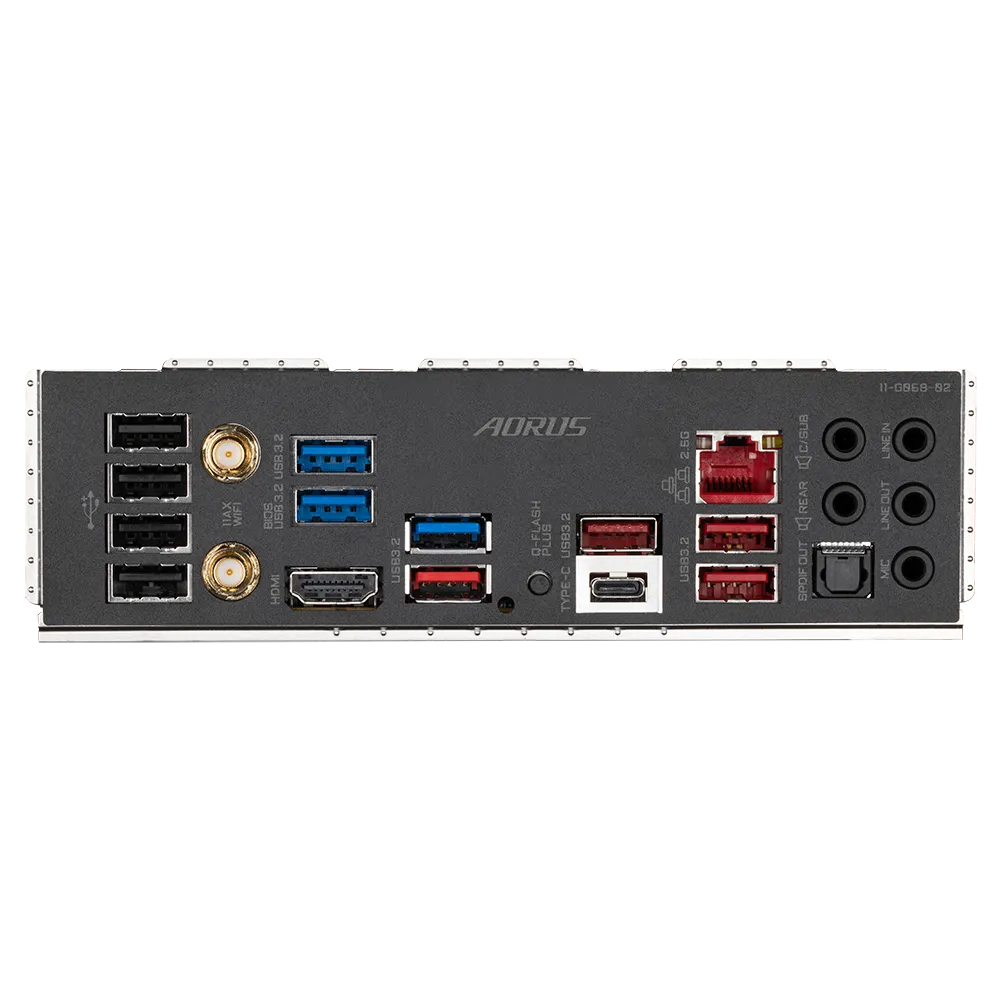

USB CPU:

  1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  2. 3 x USB 3.2 Gen 1 ports on the back panel

Chipset+ASMedia??USB 3.2 Gen 2?2 Controller:

  1. 1 x USB Type-C??port on the back panel, with USB 3.2 Gen 2?2 support

Chipset:

  1. 1 x USB Type-C??port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
