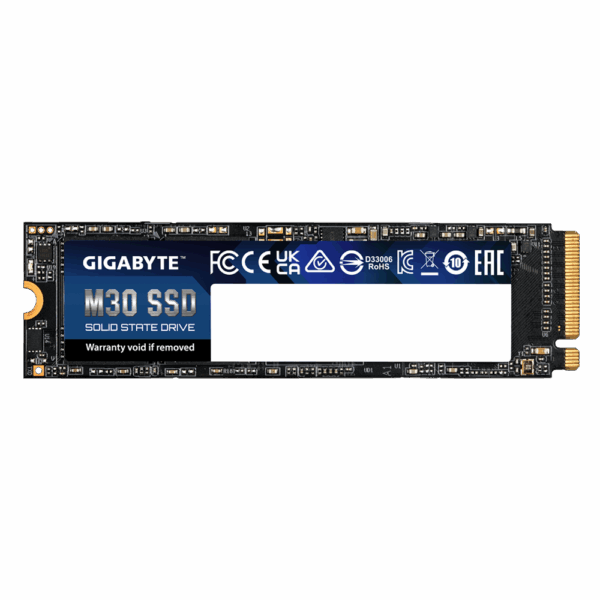

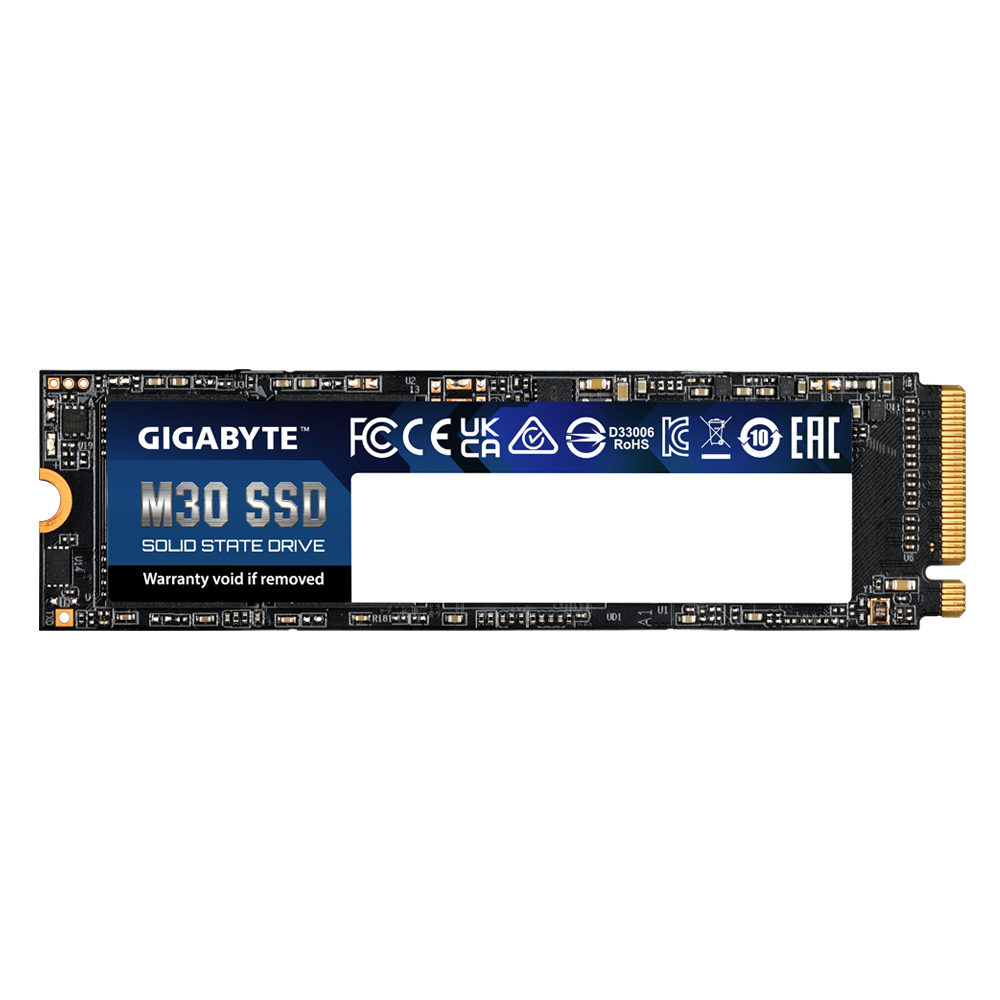

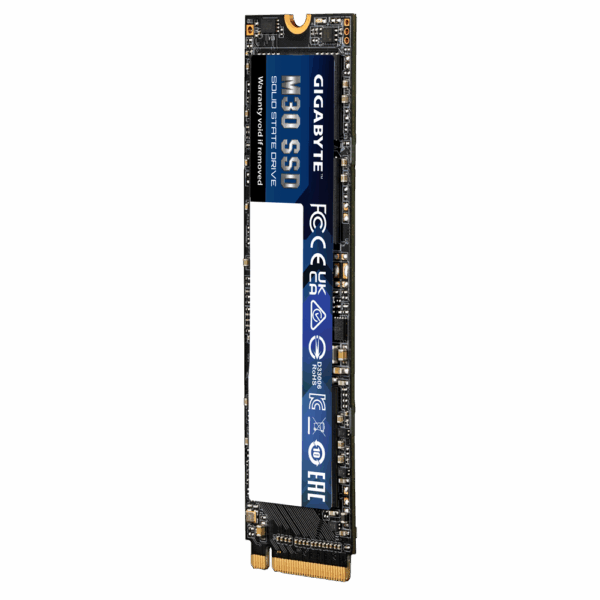

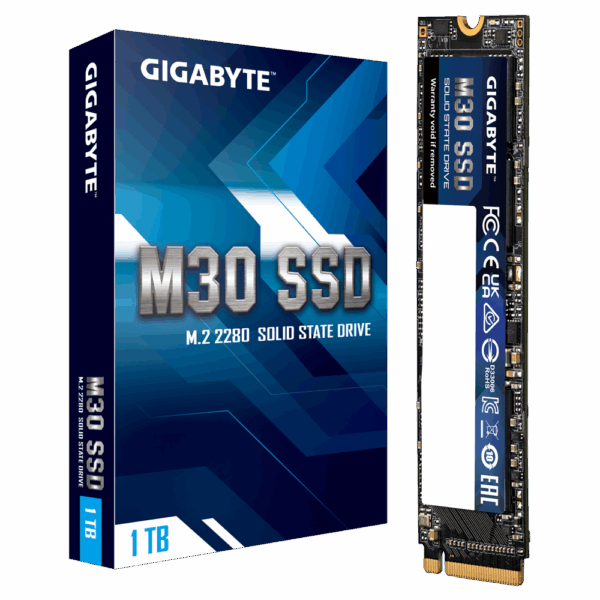

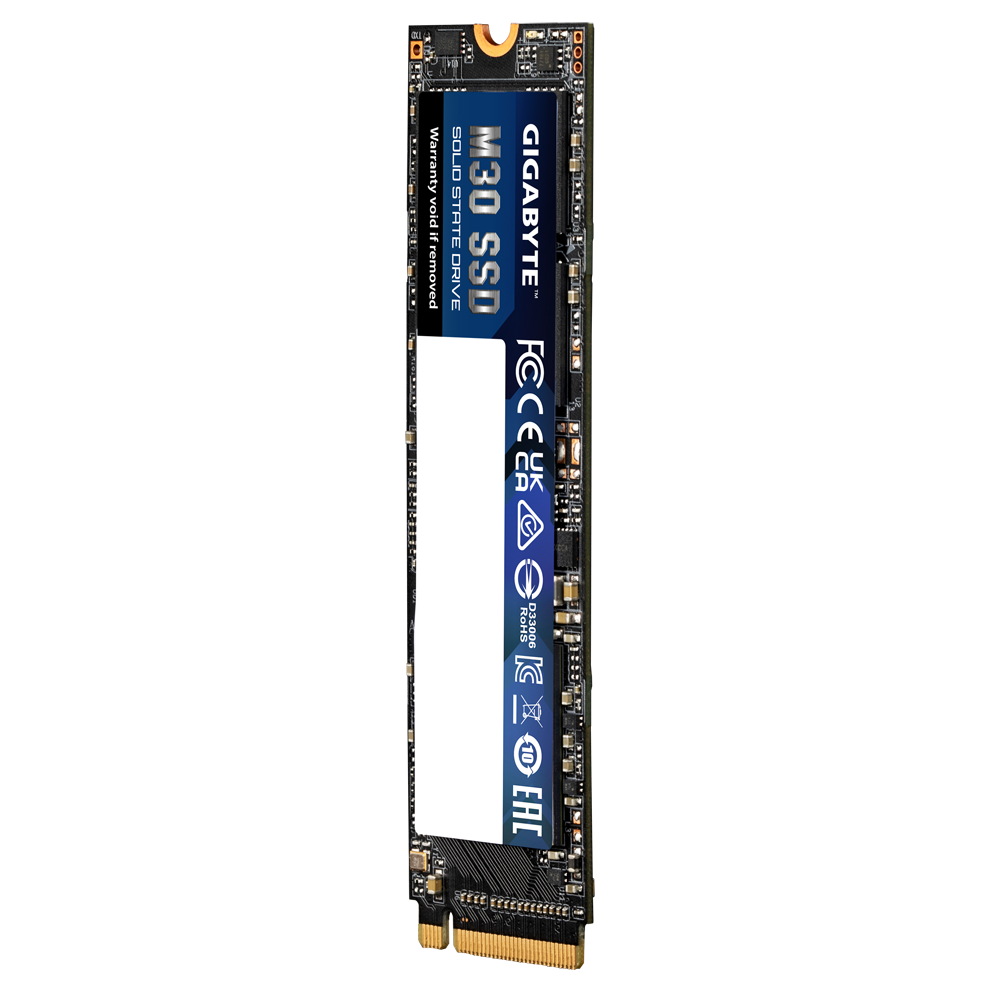

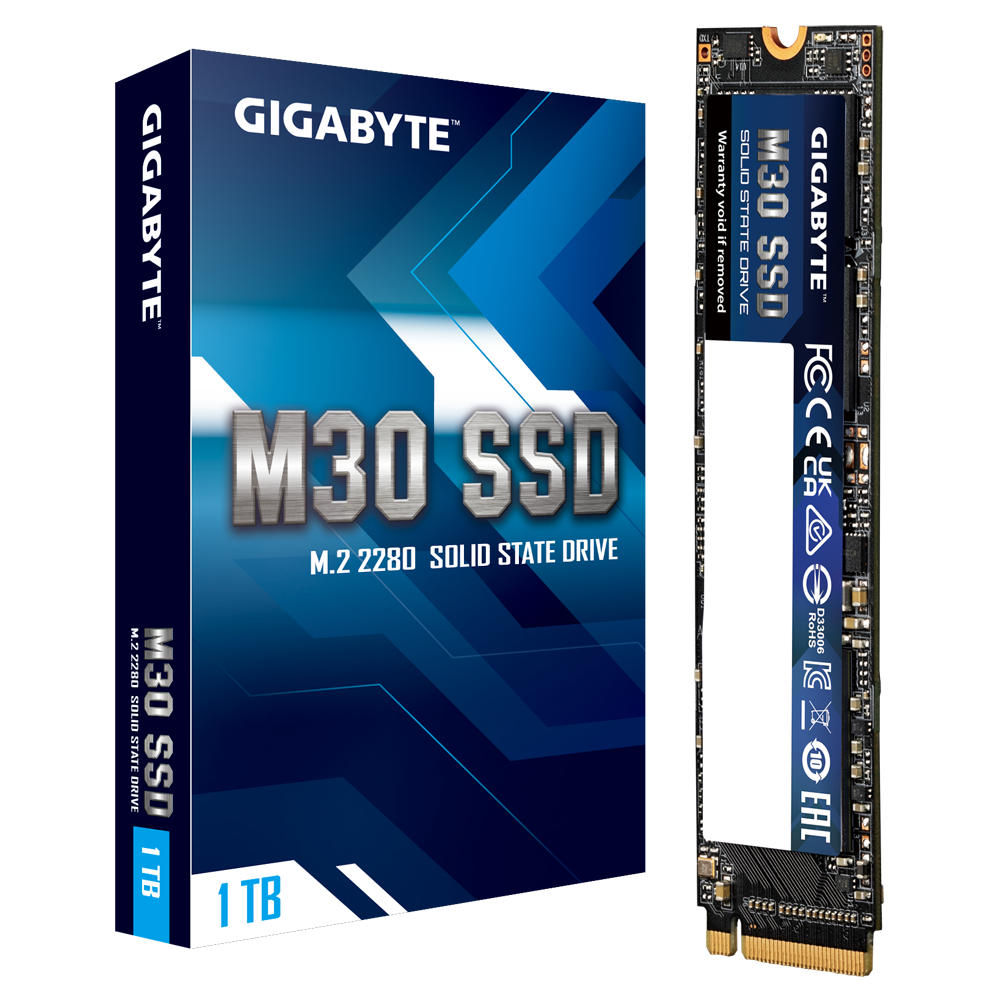

GIGABYTE M30 1TB M.2 2280 NVMe PCIe 3.0 x4 SSD (GP-GM301TB-G)

GIGABYTE M30 SSD 1TB

• Form Factor: M.2 2280
• Interface: PCI-Express 3.0 x4, NVMe 1.3
• Total Capacity: 1TB
• Sequential Read Speed : up to 3500 MB/s**
• Sequential Write speed : up to 3000 MB/s**

SPECIFICATIONS

• Interface
  PCIe 3.0×4, NVMe 1.3
• Form Factor
  M.2 2280
• Total Capacity
  1TB
• NAND
  3D TLC NAND Flash
• External DDR Cache
  DDR3L 2Gb
• Sequential Read speed
  Up to 3500 MB/s
• Sequential Write speed
  Up to 3000 MB/s
• Random Read IOPS
  up to 308K
• Random Write IOPS
  up to 332K
• Dimension
  22 x 2.3 x 80 mm
• Mean time between failure (MTBF)
  2 million hours
• Power Consumption (Active)
  Average: R: 5.9W, W:5W
• Power Consumption (Idle)
  L0/L0s/L1: 900mw
  L1.2 < 3mw
• Temperature (Operating)
  0°C to 70°C
• Temperature (Storage)
  -40°C to 85°C
