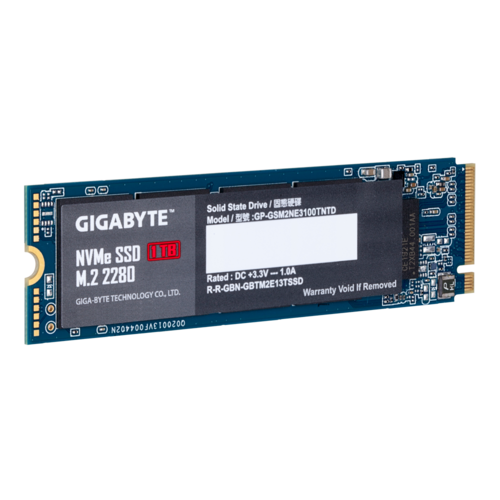

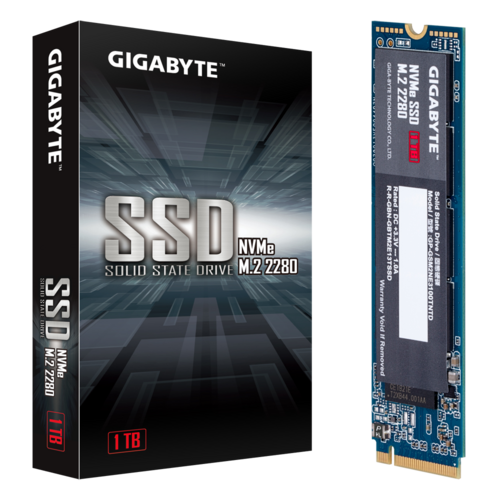

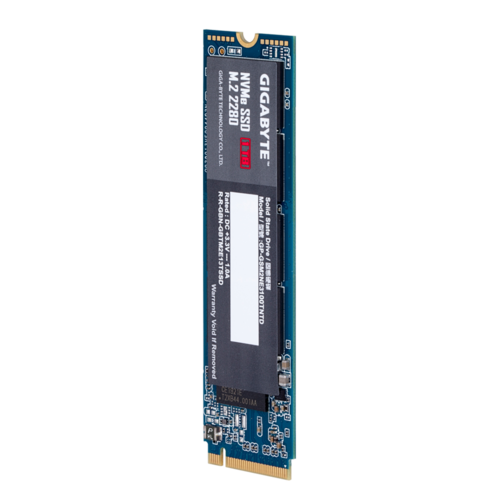

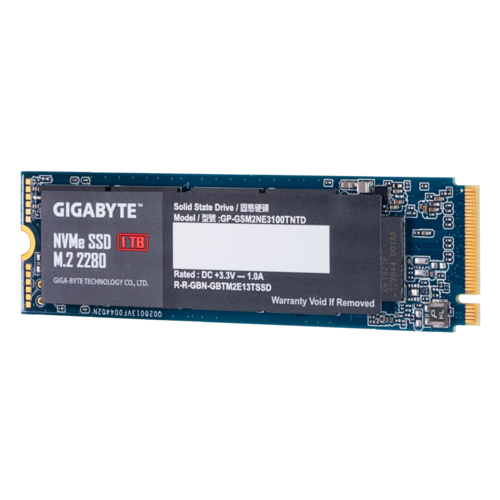

GIGABYTE 1TB NVME M.2 SSD 2280 HARD DISK DRIVE INTERNAL GP-GSM2NE3100TNTD

GIGABYTE NVMe SSD 1TB

• Form Factor: M.2 2280
• Interface: PCI-Express 3.0 x4, NVMe 1.3
• Total Capacity: 1TB*
• Warranty: Limited 5-year or 1600TBW
• Sequential Read Speed : up to 2500 MB/s**
• Sequential Write speed : up to 2100 MB/s**
• HMB (Host Memory Buffer) supported
• TRIM & S.M.A.R.T supported

SPECIFICATIONS

• Interface
  PCI-Express 3.0 x4, NVMe 1.3
• Form Factor
  M.2 2280
• Total Capacity
  1TB
• NAND
  NAND Flash
• External DDR Cache
  N/A
• Sequential Read speed
  Up to 2500 MB/s
• Sequential Write speed
  Up to 2100 MB/s
• Random Read IOPS
  Up to 295k
• Random Write IOPS
  Up to 430k
• Dimension
  80 x 22 x 2.3 mm
• Mean time between failure (MTBF)
  1.5M hours
• Max. Operating Power
  Read: 3.5W
  Write:3.3W
• Power Consumption (Idle, PS3)
  30mW
• Power Consumption(PS4, L1.2)
  5mW
• Temperature (Operating)
  0°C to 70°C
• Temperature (Storage)
  -40°C to 85°C
