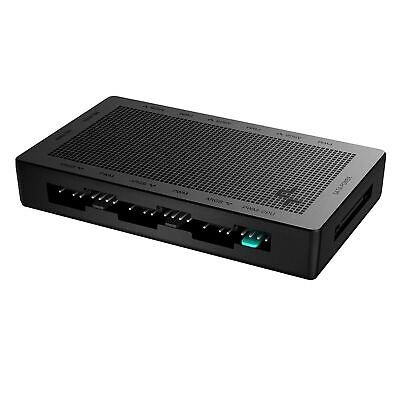

DeepCool SC790 2-in-1 PWM & ARGB Hub

The DeepCool SC790 hub offers a centralized solution for managing multiple fans and RGB components. By connecting to a single 4-pin PWM header and a 3-pin 5V ARGB header on the motherboard, it extends control to six PWM fans and six ARGB devices. The hub is powered via a SATA power connector, ensuring stable and sufficient power delivery to all connected components. Its compact design features a magnetic backplate, allowing for easy and secure installation within the PC case.

SPECIFICATIONS

• Product Dimensions: 102 × 60 × 17 mm

• Net Weight: 69 g

• Fan Ports: 6 × 4-pin PWM

• ARGB Ports: 6 × 3-pin 5V addressable RGB

• Fan Rated Voltage: 12V DC

• Fan Rated Current: 2.0A per port / 4.5A total

• RGB Rated Voltage: 5V DC

• RGB Rated Current: 2.0A per port / 4.5A total

• Power Connector: SATA Power

• Mounting Method: Magnetic

• ARGB Connector Cables:

  • 538 mm for ASUS, ASRock, MSI

  • 50 mm for Gigabyte
