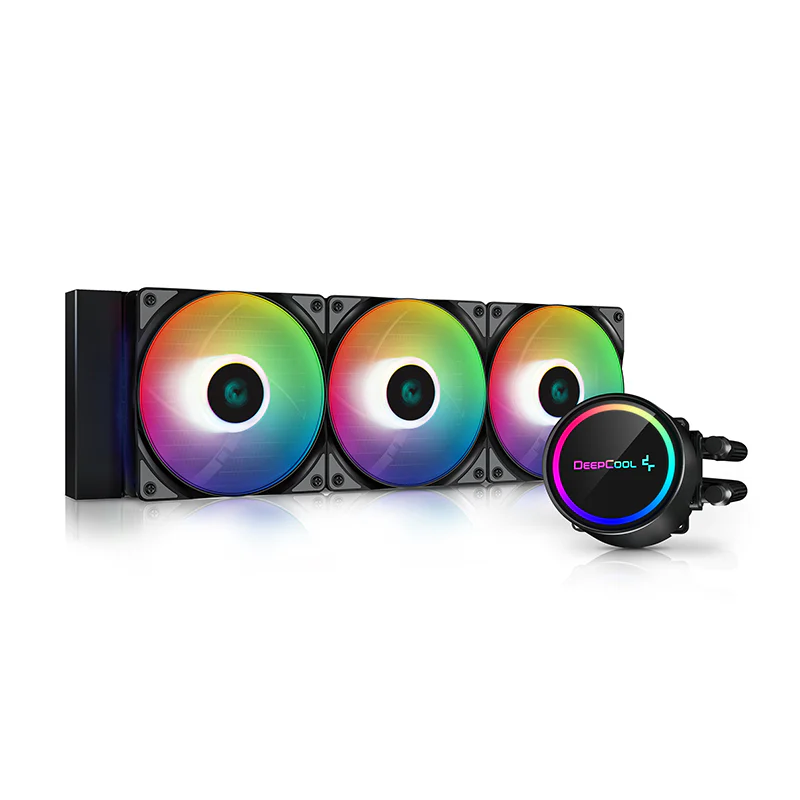

DeepCool GAMMAXX L360 ARGB

The GAMMAXX L360 ARGB is equipped with an optimized E-shaped micro water channel design, which effectively enhances heat transfer efficiency and circulation throughout the radiator. It comes with three 120mm ARGB PWM fans and an ARGB water block, both offering customizable lighting effects compatible with major motherboard software or the included RGB controller. The cooler supports a wide range of Intel and AMD sockets, ensuring broad compatibility.

SPECIFICATIONS

• Radiator Dimensions: 402 × 120 × 27 mm

• Radiator Material: Aluminum

• Tube Length: 465 mm

• Pump Dimensions: 91 × 79 × 47 mm

• Pump Speed: 2550 RPM ±10%

• Pump Noise: 17.8 dB(A)

• Pump Connector: 3-pin

• Pump Rated Voltage: 12 VDC

• Pump Rated Current: 0.21 A

• Pump Power Consumption: 2.52 W

• Fan Dimensions: 120 × 120 × 25 mm

• Fan Speed: 500~1800 RPM ±10%

• Fan Airflow: 69.34 CFM

• Fan Air Pressure: 2.42 mmAq

• Fan Noise: ≤30 dB(A)

• Fan Connector: 4-pin PWM

• Bearing Type: Hydro Bearing

• LED Type: Addressable RGB LED

• LED Connector: 3-pin (+5V-D-G)

• LED Rated Voltage: 5 VDC

• LED Power Consumption: 2.25 W (Pump) / 6.6 W (Fans)

• Socket Compatibility:

  • Intel: LGA2066/2011-v3/2011/1200/1151/1150/1155/1366

  • AMD: AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
