Deepcool CG530 FAN (DC-CG530 FAN)

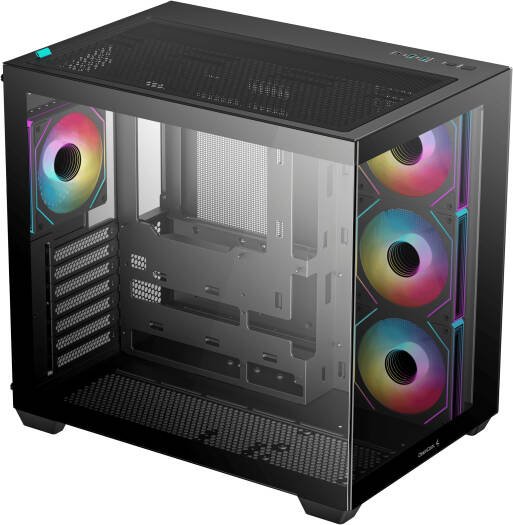

The DeepCool CG530 is a mid-tower ATX case that comes equipped with four pre-installed 120mm ARGB fans—three mounted on the side and one at the rear. These fans are PWM-controlled and feature vibrant ARGB lighting, providing both efficient cooling and a visually appealing setup. The case’s pillarless design, with tempered glass front and side panels, offers an unobstructed view of the internal components, making it an excellent choice for showcase builds.
SPECIFICATIONS
-
Fan Configuration:
-
Side: 3 × 120mm PWM ARGB reverse blade fans
-
Rear: 1 × 120mm PWM ARGB fan
-
-
Fan Support:
-
Top: 3 × 120mm or 2 × 140mm
-
Side: 3 × 120mm or 2 × 140mm
-
Rear: 1 × 120mm
-
Bottom: 3 × 120mm (configurable with HDD/SSD mounts)
-
-
Radiator Support:
-
Top: 120/140/240/280/360mm
-
Side: 120/140/240/280mm
-
Bottom: 120/240/360mm
-
-
Dimensions: 440 × 285 × 399 mm (L × W × H)
-
Materials: ABS, SPCC, Tempered Glass
-
Motherboard Support: ITX, Micro-ATX, ATX (including rear connector support)
-
Front I/O Ports:
-
2 × USB 3.0
-
1 × Gen2 Type-C
-
1 × Audio/Mic Combo
-
-
Drive Bays:
-
2 × 3.5″
-
2 + 1 × 2.5″
-
-
Expansion Slots: 7
-
CPU Cooler Height Limit: 160mm
-
GPU Length Limit: 410mm
-
Power Supply Type: ATX PS2 (maximum length: 210mm)
-
Cable Management Space: 45mm
