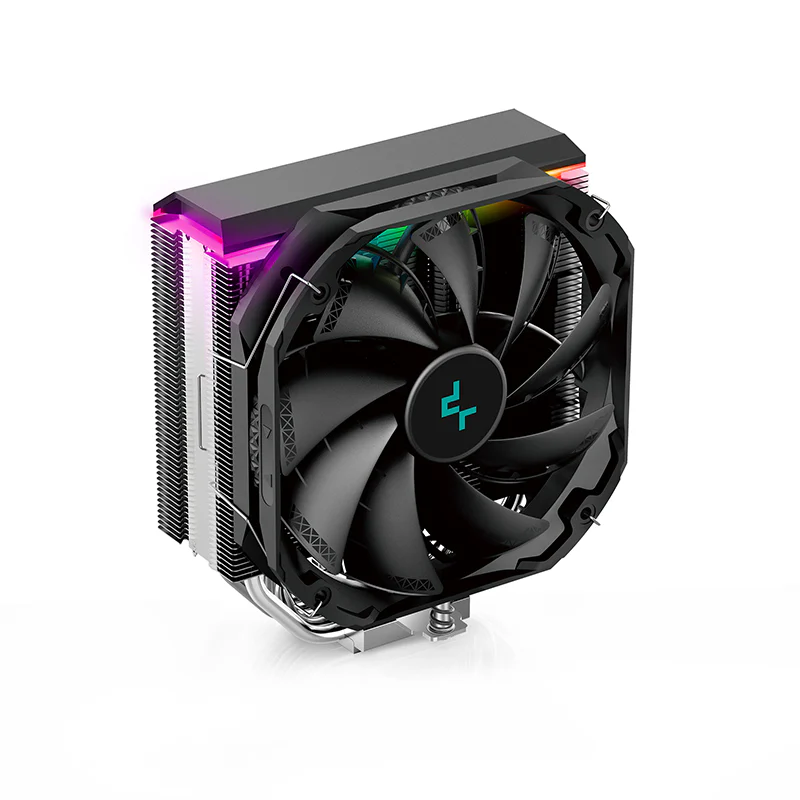

DeepCool AS500 CPU Air Cooler

The DeepCool AS500 is a high-performance single-tower CPU air cooler designed for optimal thermal efficiency and broad compatibility. Featuring a slim 48mm heatsink, it ensures zero interference with RAM modules, making it suitable for compact builds. The cooler is equipped with five 6mm nickel-plated copper heat pipes that effectively dissipate heat into a dense aluminum fin array. A 140mm TF140S PWM fan delivers substantial airflow while maintaining low noise levels. Additionally, the AS500 includes an A-RGB LED top cover, allowing for customizable lighting effects to enhance your system’s aesthetics.

SPECIFICATIONS

• Cooler Type: Single-tower CPU Air Cooler

• Heatsink Dimensions: 140 × 49 × 159 mm

• Overall Dimensions: 142 × 102 × 164 mm

• Heatpipes: 5 × Ø6 mm nickel-plated copper

• Fan Model: TF140S

• Fan Dimensions: 140 × 140 × 25 mm

• Fan Speed: 500–1200 RPM ±10%

• Airflow: 70.81 CFM

• Air Pressure: 1.14 mmAq

• Noise Level: ≤29.2 dB(A)

• Bearing Type: Fluid Dynamic Bearing

• Fan Connector: 4-pin PWM

• LED Type: Addressable RGB (A-RGB)

• LED Connector: 3-pin (+5V-D-G)

• LED Rated Voltage: 5 VDC

• LED Power Consumption: 1.4 W

• Compatibility:

  • Intel: LGA2066 / LGA2011-v3 / LGA2011 / LGA1200 / LGA1151 / LGA1150 / LGA1155

  • AMD: AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
