🛍️ Product Name

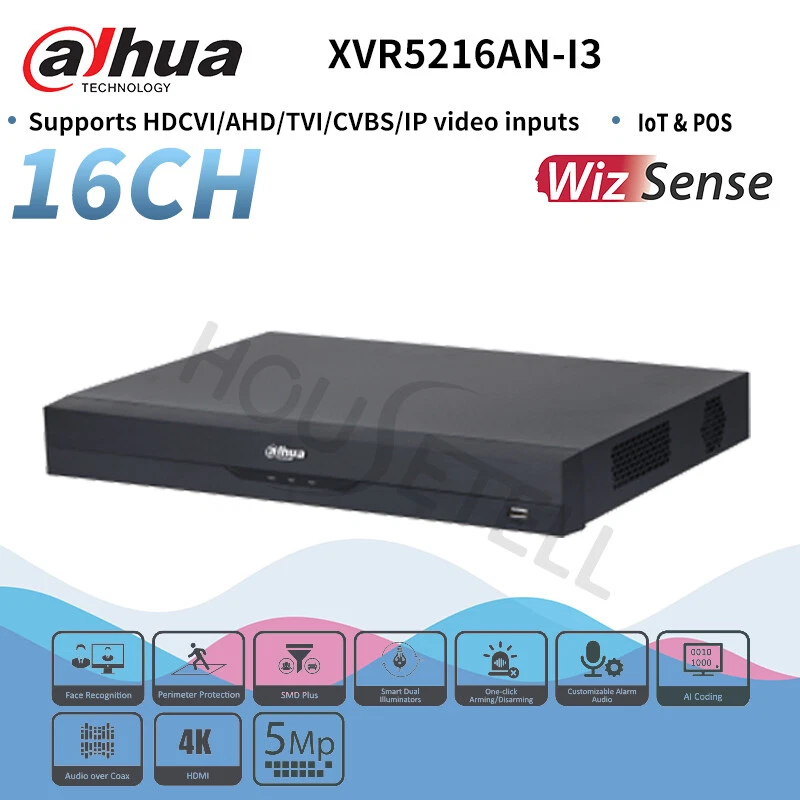

Dahua DH-XVR5216AN-I3 WizSense 16-Channel Penta-brid Digital Video Recorder – 5MP Analog, 24 IP Channels, 2 SATA Bays, AI Detection
📦 Product Overview
The Dahua DH-XVR5216AN-I3 is a 1U compact DVR supporting 16 analog channels up to 5MP and up to 24 IP channels (up to 6MP each). It features AI-powered functions including SMD Plus, perimeter protection, and face recognition for analog inputs. With support for HDCVI, AHD, TVI, CVBS, and IP video formats, it offers flexible hybrid deployment. Smart H.265+ compression reduces bandwidth and storage usage, while dual SATA bays support up to 20TB total HDD capacity for long-term recording.
🌟 Top Highlights
🎥 16 Analog Channels – Supports HDCVI/AHD/TVI/CVBS up to 5MP
🌐 24 IP Channels – Each up to 6MP resolution
🧠 AI Detection – 16CH SMD Plus, 4CH perimeter protection, 2CH face recognition
💾 2 SATA Bays – Supports up to 10TB per disk (20TB total)
⚡ Smart H.265+ – Efficient compression saves bandwidth and storage
🔌 Hybrid Input – Penta-brid support for analog and IP cameras
📊 AI Coding – Preserves detail while reducing storage load
📐 Technical Details
| Specification | Details |
|---|---|
| Model | DH-XVR5216AN-I3 |
| Analog Channels | 16 (HDCVI/AHD/TVI/CVBS) |
| IP Channels | Up to 24 (each up to 6MP) |
| Max Analog Resolution | 5MP |
| AI Functions | 16CH SMD Plus, 4CH perimeter, 2CH face recognition |
| Compression | Smart H.265+, H.265, H.264 |
| Storage | 2 × SATA (up to 10TB each) |
| Video Output | HDMI, VGA |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × RJ-45 10/100 Mbps |
| Alarm I/O | 4 in / 2 out |
| Power Supply | DC 12V / 2A |
| Dimensions | Approx. 375 × 287 × 53 mm |
| Weight | Approx. 2.5 kg (without HDD) |
💡 Why You Should Buy It
✅ Combines analog and IP camera support
✅ Dual HDD bays for scalable storage
✅ AI detection improves security accuracy
✅ Ideal for medium to large surveillance systems
🎯 Recommended Use Cases
➤ Hybrid CCTV systems with analog and IP cameras
➤ Retail and office surveillance
➤ Residential and commercial security
➤ Medium to large business monitoring
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Covered by Dahua’s limited warranty
🔄 Returns Policy: Subject to reseller terms and conditions
🚚 Shipping Info: Delivered via trusted logistics with tracking
📞 Customer Support: Available via Dahua’s authorized partners and support channels
👉 Call to Action
Deploy smart hybrid surveillance with Dahua’s 16-channel WizSense DVR — scalable, intelligent, and efficient.
