🛍️ Product Name

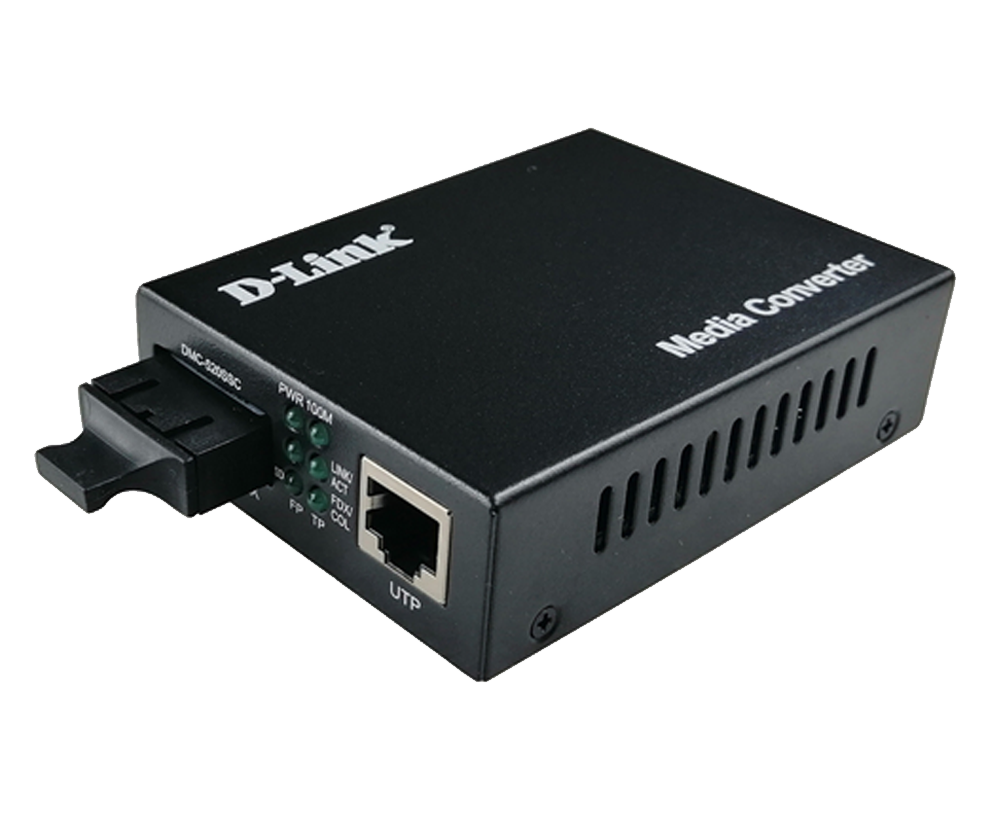

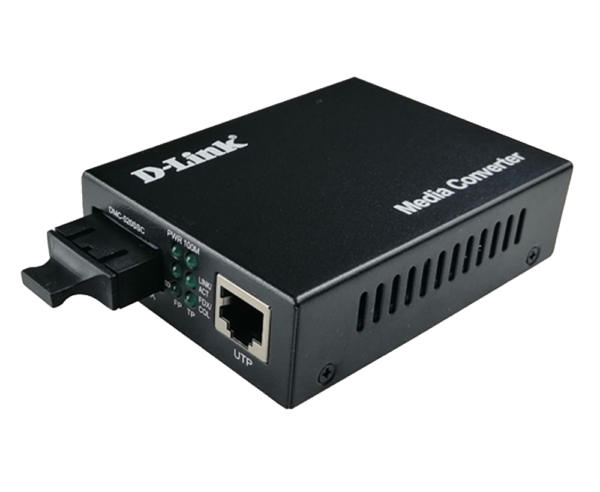

D-Link DMC‑F60SC/E 100Base‑TX to 100Base‑FX Fiber Media Converter — SC Connector, Single‑Mode, 60 km range, compatible with DMC‑1000 chassis
📦 Product Overview
The D-Link DMC‑F60SC/E is a high‑performance fiber media converter that bridges 100Base‑TX copper Ethernet to 100Base‑FX fiber networks. Featuring an SC single‑mode connector, it supports transmission distances up to 60 km, making it ideal for enterprises, service providers, and campus networks requiring long‑haul fiber connectivity. It can be deployed as a stand‑alone unit or integrated into the DMC‑1000 chassis for rack‑mount scalability.
🌟 Top Highlights
⚡ Fast Ethernet Conversion – Converts 100Base‑TX copper to 100Base‑FX fiber
🔌 Flexible Deployment – Stand‑alone or rack‑mount in DMC‑1000 chassis
🌐 Single‑Mode SC Connector – Supports fiber runs up to 60 km
💡 Auto Negotiation – Ensures optimal duplex and speed settings
📊 Status LEDs – Easy monitoring of power, link, and activity
📐 Technical Details
| Specification | Details |
|---|---|
| Conversion Type | 100Base‑TX (RJ‑45) to 100Base‑FX (SC, Single‑Mode) |
| Copper Port | 1 × RJ‑45 100Base‑TX |
| Fiber Port | 1 × SC connector, single‑mode |
| Transmission Distance | Up to 60 km |
| Data Rate | 100 Mbps full‑duplex |
| Features | Auto Negotiation, Link Pass‑Through, Auto MDI/MDIX |
| Indicators | Power, Link/Activity |
| Form Factor | Standalone or rack‑mount in DMC‑1000 chassis |
| Operating Temperature | 0° to 40°C |
| Storage Temperature | ‑10° to 70°C |
| Humidity | 10% to 90% non‑condensing |
| Dimensions | 109 × 72 × 23 mm |
| Weight | Approx. 200 g |
| Compatibility | DMC‑1000 chassis (up to 16 converters) |
💡 Why You Should Buy It
✅ Long‑distance fiber connectivity up to 60 km
✅ Reliable Fast Ethernet copper‑to‑fiber conversion
✅ Compact design with flexible deployment options
✅ Easy monitoring with LED indicators
🎯 Recommended Use Cases
➤ Connecting remote buildings or campuses
➤ Extending LANs over long fiber runs
➤ Enterprise backbone integration
➤ Service provider long‑haul fiber deployments
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Manufacturer warranty coverage available
🔄 Returns Policy: Returns accepted under standard reseller terms
🚚 Shipping Info: Delivery managed by trusted logistics partners with tracking
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Choose the D-Link DMC‑F60SC/E for secure, long‑distance fiber connectivity across your network.
