🛍️ Product Name

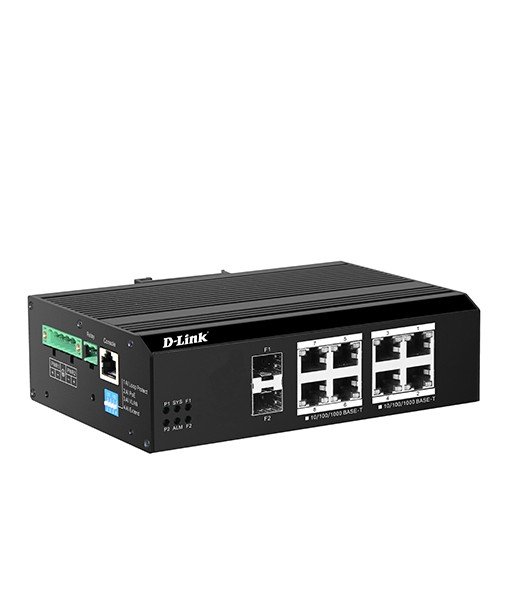

D-Link DIS‑F2010PS‑E 10-port Gigabit Layer 2 Managed Industrial PoE Switch (8 × 10/100/1000Base‑T PoE, 2 × 100/1000Mbps SFP, 240W Power Budget, 250m @10Mbps, ‑40~75°C, PSU not included, VLAN/QoS/STP/RSTP/MSTP, IGMP/MLD Snooping, Web UI/CLI/SNMP, CE/FCC Certified)
📦 Product Overview
The D-Link DIS‑F2010PS‑E is a robust Layer 2 managed industrial PoE switch engineered for mission‑critical deployments in harsh environments. With eight gigabit PoE copper ports and two SFP uplinks, it delivers up to 240W total PoE power, supporting extended reach up to 250m at 10Mbps. Advanced management features including VLAN, QoS, STP/RSTP/MSTP, and IGMP/MLD snooping ensure optimized traffic control and reliability. Certified for industrial standards, it offers Web UI, CLI, and SNMP management for flexible integration into enterprise and industrial networks.
🌟 Top Highlights
⚡ High PoE Power – 240W budget, up to 30W per port
🌐 Gigabit Connectivity – 8 × copper + 2 × SFP uplinks
🏗️ Industrial Design – Rugged, fanless, DIN‑rail mountable
🌡️ Wide Temperature Range – Operates reliably from ‑40°C to 75°C
🛠️ Advanced Layer 2 Features – VLAN, QoS, STP/RSTP/MSTP, IGMP/MLD snooping
📐 Technical Details
| Specification | Details |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af/at |
| Copper Ports | 8 × 10/100/1000BASE‑T PoE (up to 30W each) |
| Fiber Ports | 2 × 100/1000Mbps SFP slots |
| PoE Power Budget | 240W total |
| Extended Reach | Up to 250m at 10Mbps |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K entries |
| Buffer Memory | 4Mbit |
| Management Interfaces | Web UI, CLI, SNMP |
| Layer 2 Features | VLAN, QoS, STP, RSTP, MSTP, IGMP/MLD snooping |
| Installation | DIN‑rail mountable |
| Operating Temperature | ‑40°C to 75°C |
| Storage Temperature | ‑40°C to 85°C |
| Humidity | 5% to 95% non‑condensing |
| Power Supply | External PSU required (not included) |
| Certifications | CE, FCC |
| Dimensions | Approx. 150 × 100 × 48 mm |
| Weight | Approx. 800g |
💡 Why You Should Buy It
✅ Provides industrial‑grade gigabit connectivity with PoE
✅ Advanced Layer 2 management for optimized traffic control
✅ Rugged design for harsh environments
✅ Flexible management via Web UI, CLI, and SNMP
🎯 Recommended Use Cases
➤ Industrial automation and control systems
➤ Outdoor surveillance and security networks
➤ Transportation and roadside infrastructure
➤ Enterprise networks requiring managed PoE switching
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Deploy D‑Link’s managed industrial PoE switch for secure, high‑performance connectivity in demanding environments.
