🛍️ Product Name

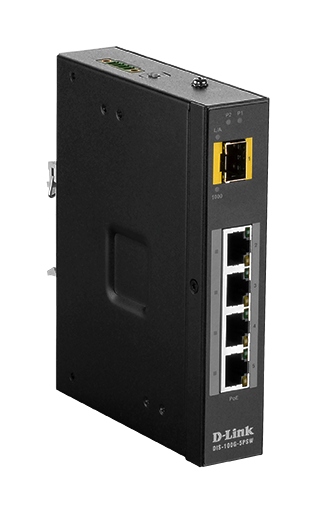

D-Link DIS‑100G‑5PSW 4-port 1GBASE‑T PoE + 1-port SFP DIN‑Rail Unmanaged Industrial Switch (Port 1‑4 up to 30W, Power Budget: 120W, ‑40~75°C, PSU not included)
📦 Product Overview
The D-Link DIS‑100G‑5PSW is a rugged unmanaged industrial gigabit switch designed for harsh environments. Featuring four PoE copper ports and one SFP fiber uplink, it delivers up to 30W per port with a total power budget of 120W. Its DIN‑rail mountable design, wide operating temperature range, and fanless construction make it ideal for industrial automation, outdoor surveillance, and transportation networks requiring reliable gigabit connectivity.
🌟 Top Highlights
⚡ PoE Support – Up to 30W per port, 120W total budget
🌐 Gigabit Connectivity – 4 × 1GBASE‑T + 1 × SFP uplink
🏗️ Industrial Design – DIN‑rail mountable, fanless, rugged build
🌡️ Wide Temperature Range – Operates reliably from ‑40°C to 75°C
🔒 Unmanaged Simplicity – Plug‑and‑play deployment with zero configuration
📐 Technical Details
| Specification | Details |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af/at |
| Copper Ports | 4 × 10/100/1000BASE‑T (PoE up to 30W each) |
| Fiber Port | 1 × 100/1000Mbps SFP slot |
| PoE Power Budget | 120W total |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K entries |
| Buffer Memory | 1Mbit |
| Installation | DIN‑rail mountable |
| Operating Temperature | ‑40°C to 75°C |
| Storage Temperature | ‑40°C to 85°C |
| Humidity | 5% to 95% non‑condensing |
| Power Supply | External PSU required (not included) |
| Dimensions | 119 × 100 × 48 mm |
| Weight | Approx. 500g |
| Certifications | CE, FCC, UL, EN50121‑4 |
💡 Why You Should Buy It
✅ Provides industrial‑grade gigabit connectivity with PoE
✅ Rugged design for harsh environments
✅ Wide temperature tolerance ensures reliability
✅ Simple unmanaged deployment with zero configuration
🎯 Recommended Use Cases
➤ Outdoor surveillance camera networks
➤ Industrial automation and control systems
➤ Transportation and roadside infrastructure
➤ Harsh environment gigabit connectivity deployments
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Power your industrial network with D‑Link’s rugged PoE switch for dependable gigabit performance.
