🛍️ Product Name

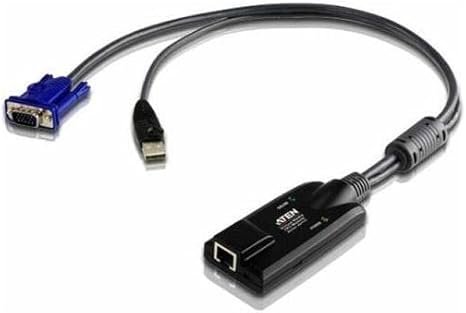

ATEN KA7175 USB VGA Virtual Media KVM Adapter Cable – CPU Module for KN/KM Series, 1920×1200 Support, Auto Signal Compensation
📦 Product Overview
The ATEN KA7175 is a compact USB VGA KVM adapter cable that connects USB-enabled computers to ATEN KN and KM series Cat 5 KVM switches. It supports virtual media functionality, enabling remote file transfers and software installations. With auto signal compensation and delay skew correction, it delivers superior video quality up to 1920×1200. The built-in ASIC ensures stable performance, while keyboard and mouse emulation maintains server responsiveness during switching.
🌟 Top Highlights
🔌 USB + VGA Interface – Connects USB computers to Cat 5 KVM switches
🖥️ High Video Resolution – Up to 1920×1200 (Reduced Blanking)
📁 Virtual Media Support – Enables remote file access and software deployment
🧠 Built-in ASIC – Enhances reliability and compatibility
🎮 Keyboard & Mouse Emulation – Maintains server responsiveness during switch transitions
📏 Compact & Lightweight – Easy deployment with minimal footprint
📐 Technical Details
| Specification | Details |
|---|---|
| Model Number | KA7175 |
| Video Interface | VGA (HDDB15 male) |
| USB Interface | USB Type-A male |
| KVM Switch Interface | RJ-45 (Cat 5e/6 cable) |
| Max Resolution | 1920×1200 @ 60Hz (RB) |
| Distance Support | Up to 50m (1600×1200), 40m (1920×1200) |
| Signal Compensation | Auto Signal Compensation (ASC) |
| Virtual Media | Supported |
| Firmware | Upgradeable |
| Dimensions | 9.4 × 4.2 × 2.2 cm |
| Weight | 0.15 kg |
Sources:
💡 Why You Should Buy It
✅ Enables USB system integration with ATEN Cat 5 KVM switches
✅ Supports virtual media for remote management
✅ Delivers high-resolution video with signal compensation
✅ Compact and easy to deploy in server environments
🎯 Recommended Use Cases
➤ Connecting USB servers to KN/KM series KVM switches
➤ Remote software installation via virtual media
➤ Data center and enterprise server management
➤ Multi-platform KVM environments
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Covered under ATEN limited hardware warranty
🔄 Returns Policy: Subject to distributor or reseller terms
🚚 Shipping Info: Available via authorized ATEN partners
📞 Customer Support: ATEN global support and firmware updates available
👉 Call to Action
Upgrade your KVM setup with the ATEN KA7175—USB connectivity, virtual media, and enterprise-grade performance
