🛍️ Product Name

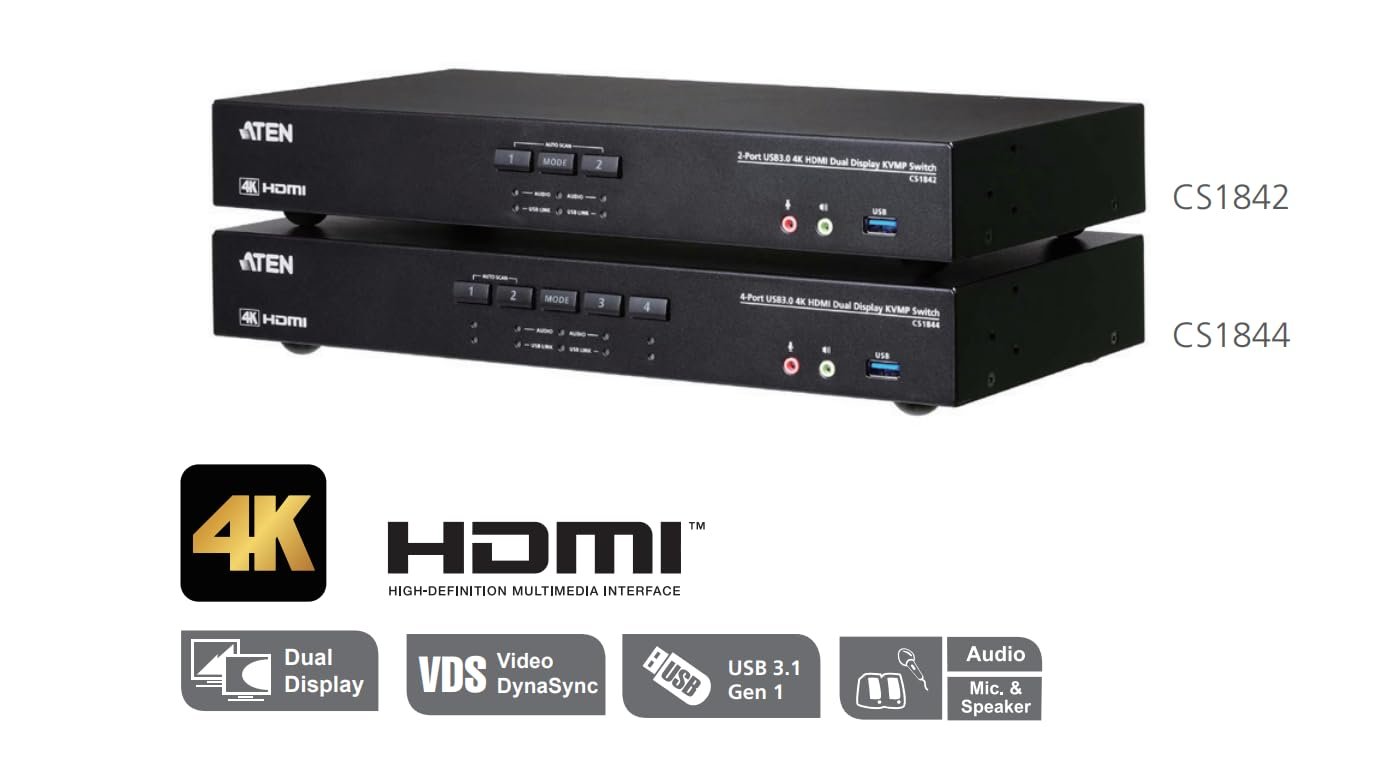

ATEN CS1842 2-Port USB 3.0 True 4K HDMI Dual Display KVMP Switch – HDMI 2.0, HDCP 2.2, USB 3.1 Hub, Pushbutton Control
📦 Product Overview
The ATEN CS1842 is a high-performance KVMP switch designed for dual-display 4K workstations. It allows users to control two HDMI-enabled computers from a single USB keyboard, mouse, and two HDMI monitors. Compliant with HDMI 2.0 and HDCP 2.2 standards, it supports resolutions up to 4096 × 2160 @ 60Hz. The built-in USB 3.1 Gen 1 hub enables fast peripheral sharing, while audio mixer mode and Video DynaSync™ ensure seamless switching and optimized display output. Switching is supported via pushbuttons, hotkeys, mouse gestures, and RS-232 commands.
🌟 Top Highlights
🖥️ Dual HDMI 2.0 Display – Supports two monitors per system
🎯 True 4K Resolution – Up to 4096 × 2160 @ 60Hz
🔒 HDCP 2.2 Compliant – Secure content protection
🔌 USB 3.1 Gen 1 Hub – 2 ports with 5 Gbps transfer rate
🎧 Audio Mixer Mode – Mixes audio from both systems
🖱️ Flexible Switching – Pushbuttons, hotkeys, mouse, RS-232
📐 Technical Details
| Specification | Details |
|---|---|
| Model | CS1842 |
| Computer Ports | 2 x HDMI + USB |
| Console Ports | 2 x HDMI, USB Keyboard/Mouse, Audio |
| USB Hub | 2 x USB 3.1 Gen 1 |
| Video Resolution | 4096 × 2160 @ 60Hz |
| HDMI Standard | HDMI 2.0 |
| HDCP Support | HDCP 2.2 |
| Audio Support | Audio Mixer Mode, 2.1 surround |
| Switching Methods | Pushbuttons, Hotkeys, Mouse, RS-232 |
| OS Compatibility | Windows, Mac, Linux |
| Dimensions | 210 x 88 x 55.5 mm |
💡 Why You Should Buy It
✅ Dual-display 4K HDMI switching
✅ USB 3.1 hub for fast peripheral sharing
✅ Audio mixer mode for blended output
✅ HDCP 2.2 compliance for secure content
✅ Plug-and-play with flexible switching options
🎯 Recommended Use Cases
➤ Dual-monitor 4K workstations
➤ Multimedia editing setups
➤ Secure desktop switching
➤ USB peripheral sharing between systems
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through ATEN support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official ATEN channels and authorized resellers
👉 Call to Action
Experience dual-display 4K switching with ATEN CS1842 — HDMI 2.0, USB 3.0, and audio control in one sleek unit.
