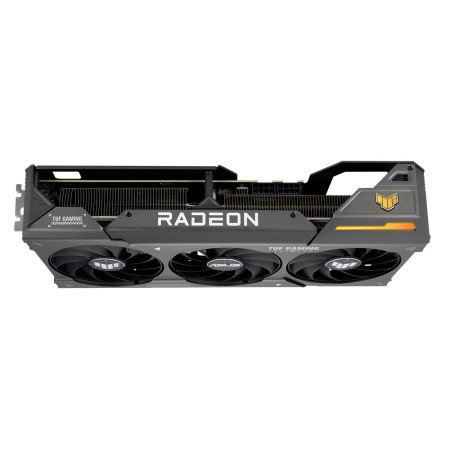

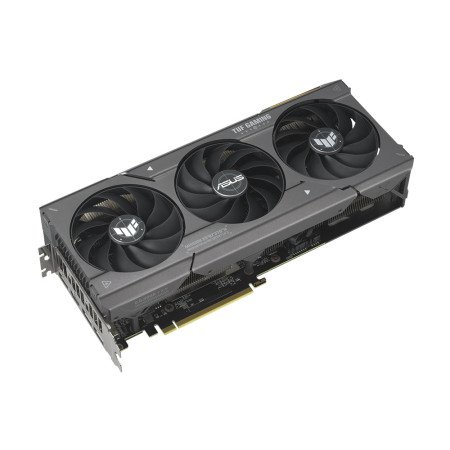

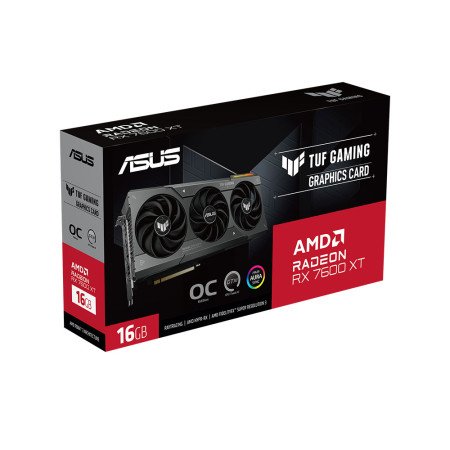

ASUS TUF Gaming Radeon? RX 7600 XT OC Edition 16GB GDDR6
- Axial-tech fan design:?A smaller fan hub facilitates longer blades and a barrier ring that increases downward air pressure
- Dual ball fan bearings?last up to twice as long as conventional designs
- Military-grade capacitors?rated for 20K hours at 105C make the GPU power rail more durable
- Metal exoskeleton?adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme?precision automated manufacturing for higher reliability
- GPU Tweak III?software provides intuitive performance tweaking, thermal controls, and system monitoring
- Part Number:?90YV0K20-M0NA00
SPECIFICATIONS
Graphic Engine
AMD Radeon? RX 7600 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL?4.6
Video Memory
16GB GDDR6
Engine Clock
OC mode : up to 2830 MHz (Boost Clock)/up to 2559 MHz (Game Clock)
Default mode : up to 2810 MHz (Boost Clock)/up to 2539 MHz (Game Clock)
Stream Processors
2048
Memory Speed
18 Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 2.1)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual
Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions
300.2 x 142.75 x 59.2 mm
11.81 x 5.6 x 2.33 inch
Recommended PSU
600W
Power Connectors
2 x 8-pin
Slot
2.96 Slot
