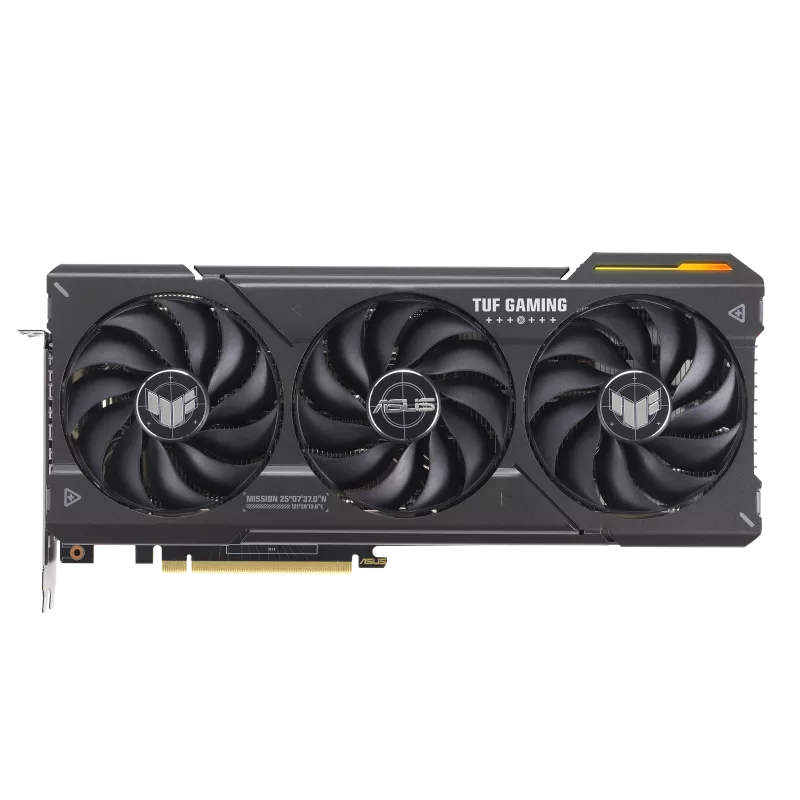

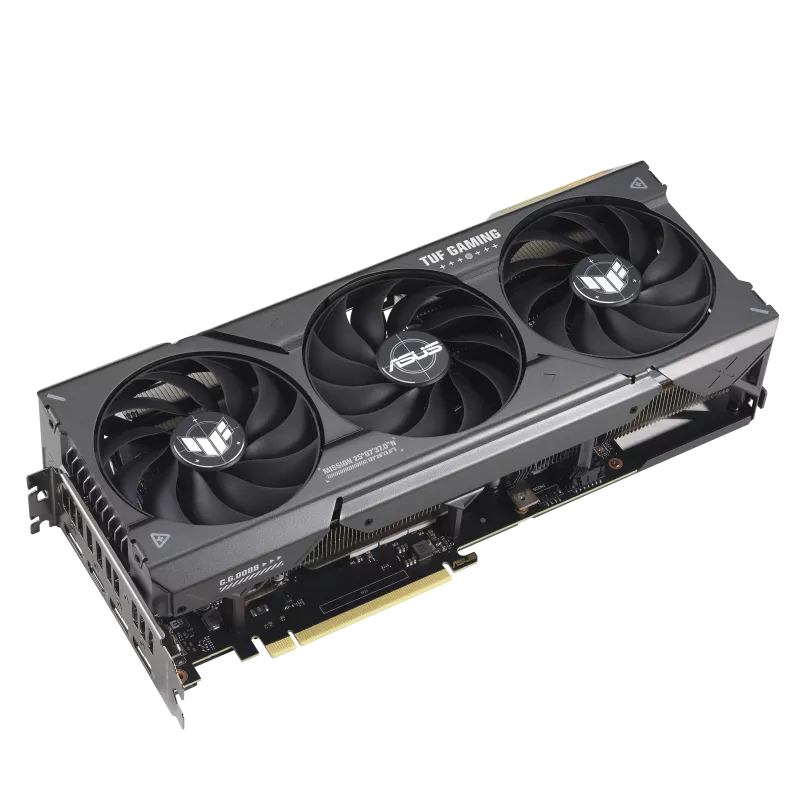

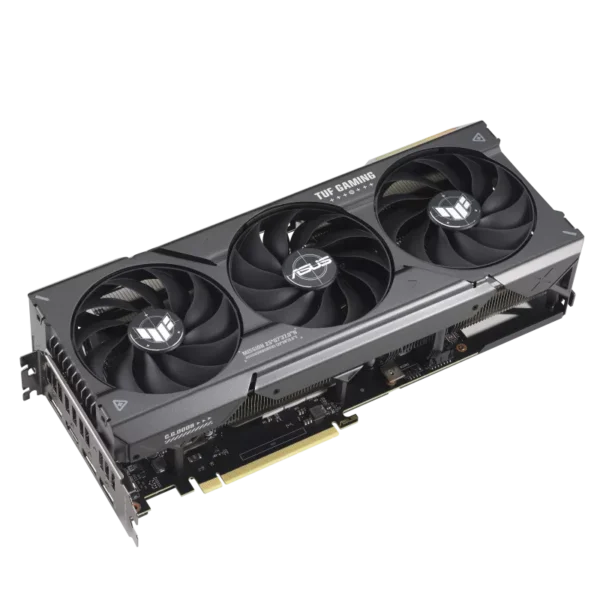

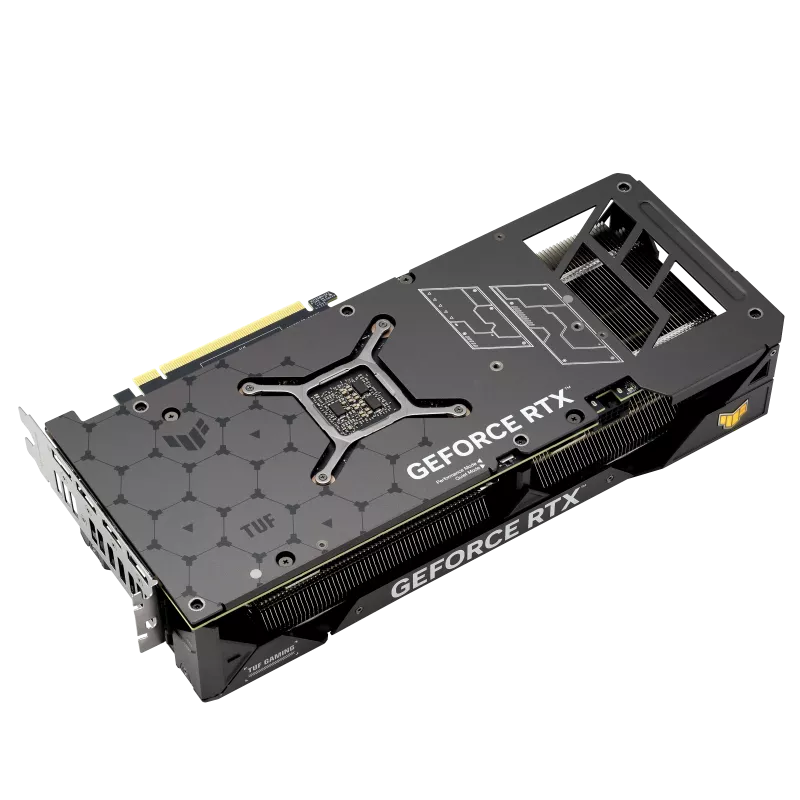

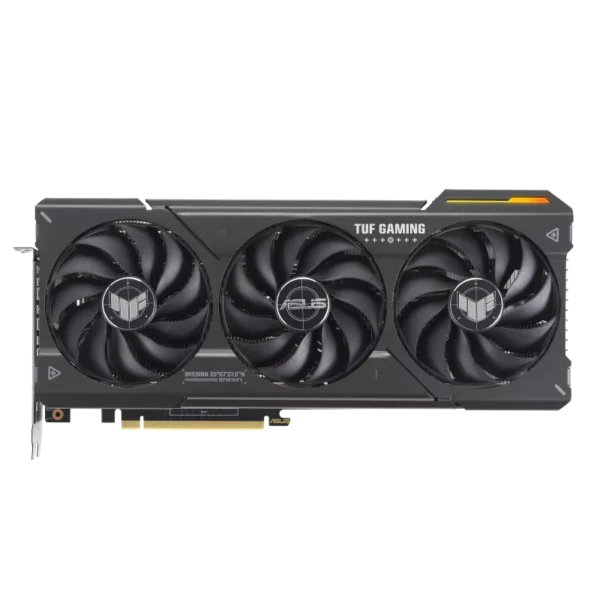

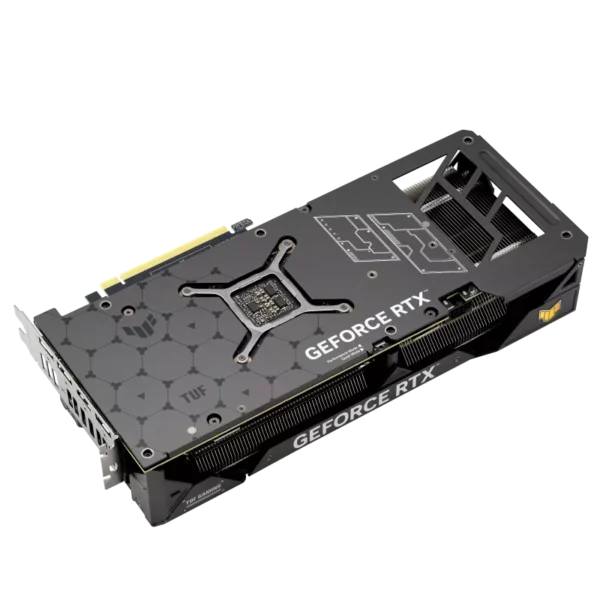

ASUS TUF Gaming GeForce RTX? 4070 SUPER 12GB GDDR6X OC Edition
- AI Performance: 588 AI TOPS
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores:?Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores:?Up to 2X ray tracing performance
- OC mode: 2595 MHz (OC mode)/ 2565 MHz (Default mode)
- Axial-tech fans?scaled up for 21% more airflow
- Dual ball fan bearings?last up to twice as long as conventional designs
- Military-grade capacitors?rated for 20K hours at 105C make the GPU power rail more durable
- Vented exoskeleton?adds structural rigidity and vents to increase heat reliability
- Auto-Extreme?precision automated manufacturing for higher reliability
- GPU Tweak III?software provides intuitive performance tweaking, thermal controls, and system monitoring
SPECIFICATIONS
Model
TUF-RTX4070S-O12G-GAMING
Graphic Engine
NVIDIA? GeForce RTX? 4070 SUPER
AI Performance
588
Bus Standard
PCI Express 4.0
OpenGL
OpenGL?4.6
Video Memory
12GB GDDR6X
Engine Clock
OC mode : 2595 MHz (Boost Clock)
Default mode : 2565 MHz (Boost Clock)
Default mode : 2565 MHz (Boost Clock)
CUDA Core
7168
Memory Speed
21 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution 7680 x 4320

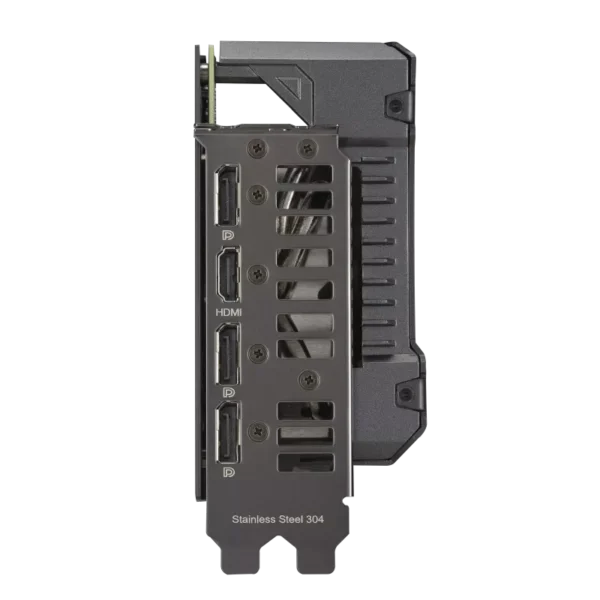

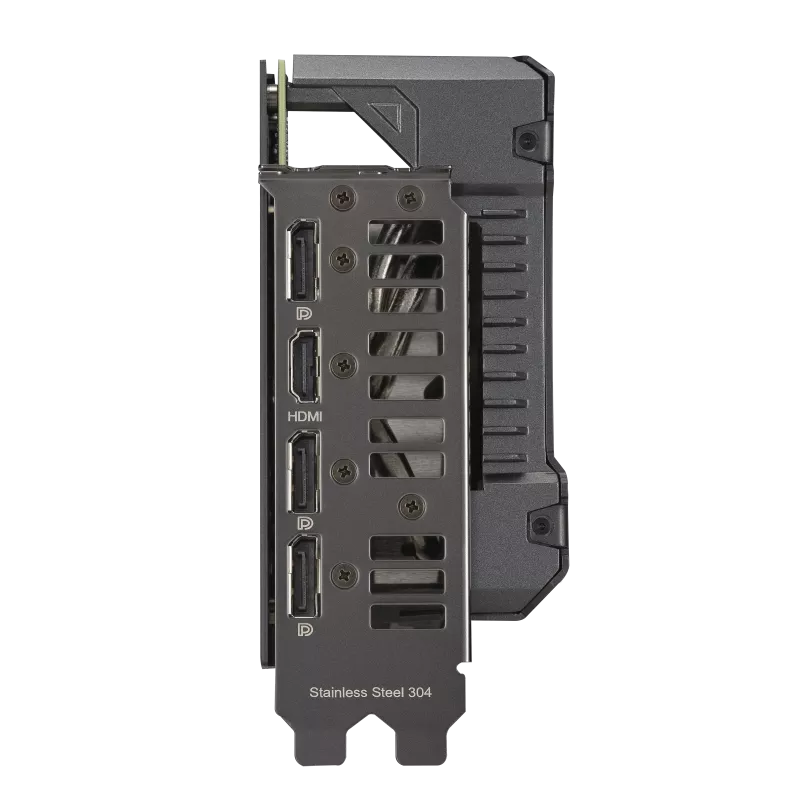

Interface
Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection Card
1 x Speedsetup Manual
1 x Thank you Card
1 x TUF Velcro Hook & Loop

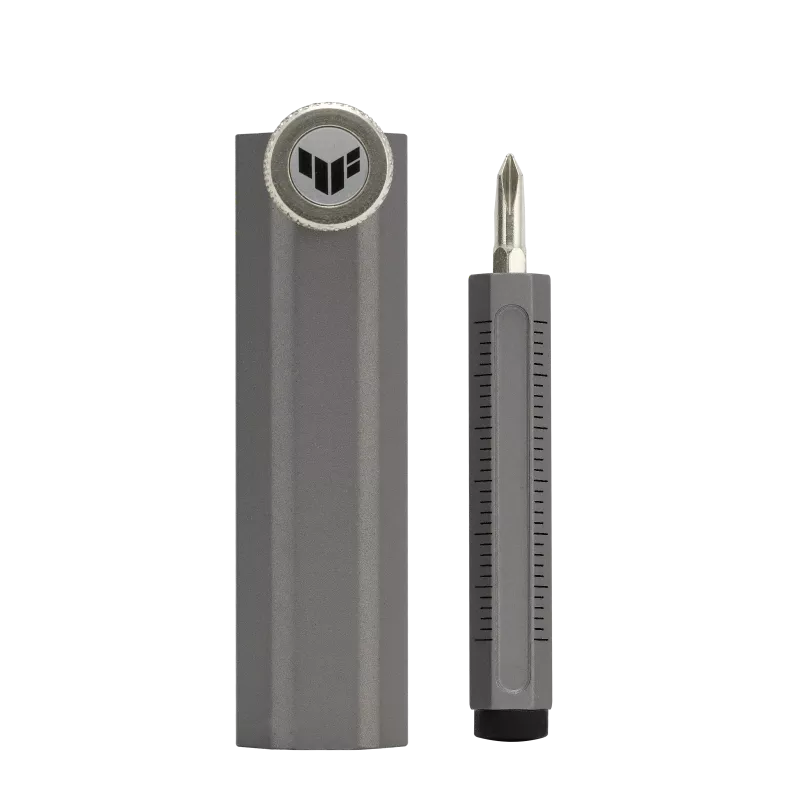

1 x TUF Graphics card holder
1 x TUF Gaming Certificate
1 x Adapter Cable (1 to 2)
1 x Speedsetup Manual
1 x Thank you Card
1 x TUF Velcro Hook & Loop
1 x TUF Graphics card holder
1 x TUF Gaming Certificate
1 x Adapter Cable (1 to 2)
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
301 x 139 x 63 mm
11.85 x 5.47 x 2.48 inch
11.85 x 5.47 x 2.48 inch
Recommended PSU
750W
Power Connectors
1 x 16-pin
Slot
3.15 Slot
