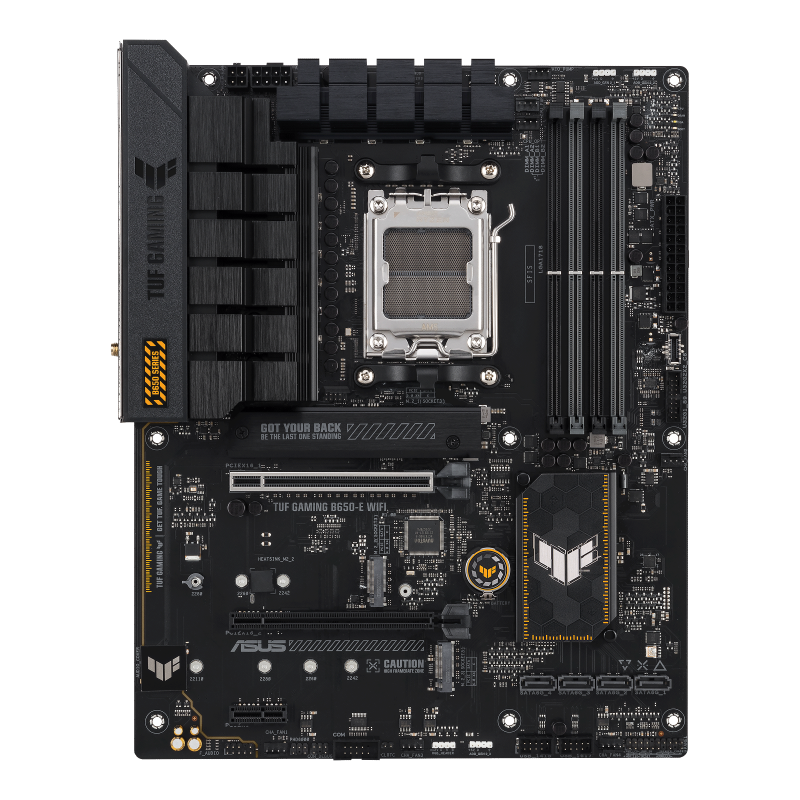

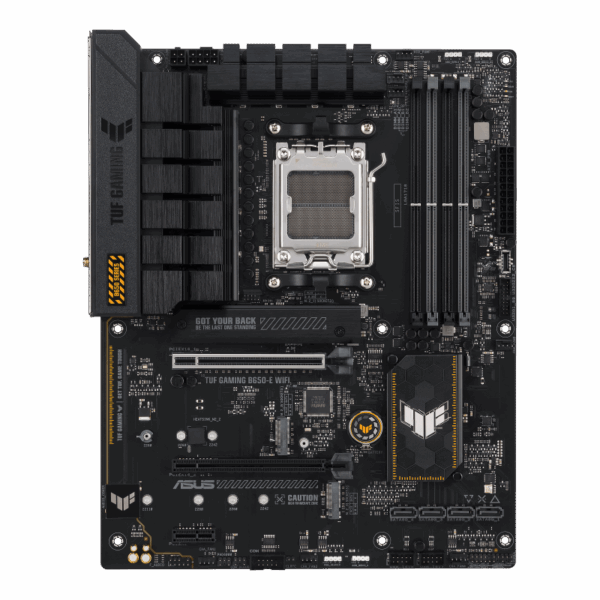

TUF GAMING B650-E WIFI
ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen? Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
SPECIFICATIONS
Model
TUF GAMING B650-E WIFI
CPU
AMD Socket AM5 for AMD Ryzen? 9000 & 8000 & 7000 Series Desktop Processors*
Chipset
AMD B650
Memory
4 x DIMM, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered? Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO?)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration,?for more information refer to www.asus.com for memory support list.
**?Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered? Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO?)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration,?for more information refer to www.asus.com for memory support list.
**?Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x DisplayPort*
1 x HDMI? port**
* Supports max. 8K@60Hz as specified in?DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI?2.1.
***?VGA resolution support depends on processors’ or graphic cards’ resolution.
1 x HDMI? port**
* Supports max. 8K@60Hz as specified in?DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI?2.1.
***?VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
AMD Ryzen? 9000 & 7000 Series Desktop?Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen? 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4?mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
* Please check PCIe bifurcation table on
support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
-?To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen? 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4?mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
* Please check PCIe bifurcation table on
support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
-?To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA?6Gb/s ports
AMD Ryzen? 9000 & 7000 Series Desktop?Processors
M.2_1 slot (Key M), type 2242/2260/2280?(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280?(supports PCIe 4.0 x4 mode)
AMD Ryzen? 8000 Series Desktop Processors
M.2_1 slot (Key M), type?2242/2260/2280 (supports PCIe 4.0 x4?mode)
M.2_2 slot (Key M), type 2242/2260/2280?(supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type?2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/10 and SATA RAID 0/1/10.
**?Specifications vary by CPU types.
AMD Ryzen? 9000 & 7000 Series Desktop?Processors
M.2_1 slot (Key M), type 2242/2260/2280?(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280?(supports PCIe 4.0 x4 mode)
AMD Ryzen? 8000 Series Desktop Processors
M.2_1 slot (Key M), type?2242/2260/2280 (supports PCIe 4.0 x4?mode)
M.2_2 slot (Key M), type 2242/2260/2280?(supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type?2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/10 and SATA RAID 0/1/10.
**?Specifications vary by CPU types.
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth? v5.3**
* WiFi 6E 6GHz regulatory may vary between?countries.
** The Bluetooth version may vary, please?refer to the Wi-Fi module manufacturer’s website for the latest specifications.
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth? v5.3**
* WiFi 6E 6GHz regulatory may vary between?countries.
** The Bluetooth version may vary, please?refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
Rear USB (Total 8 ports)
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C?)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB?Type-C?)
1 x USB 5Gbps header(s) support(s) 2?additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4?additional USB 2.0 ports
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C?)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB?Type-C?)
1 x USB 5Gbps header(s) support(s) 2?additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4?additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition?Audio CODEC*
– Supports: Jack-detection,?Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
* Due to limitations in HDA bandwidth,?32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the?front panel is required to support 7.1 Surround Sound audio output.
– Supports: Jack-detection,?Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
* Due to limitations in HDA bandwidth,?32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the?front panel is required to support 7.1 Surround Sound audio output.

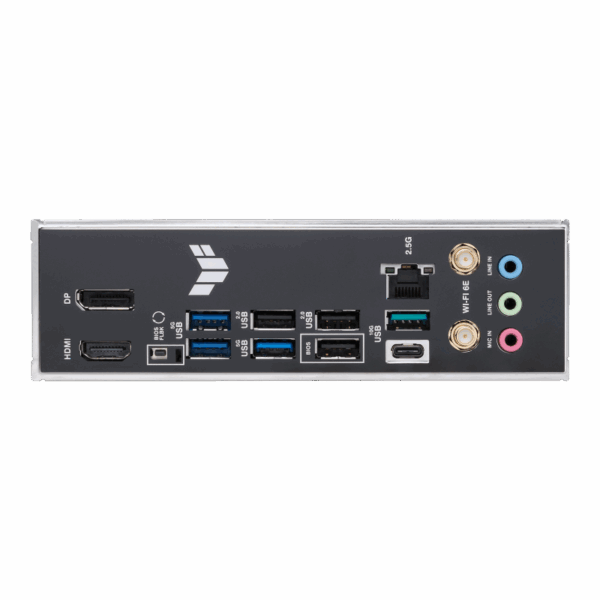

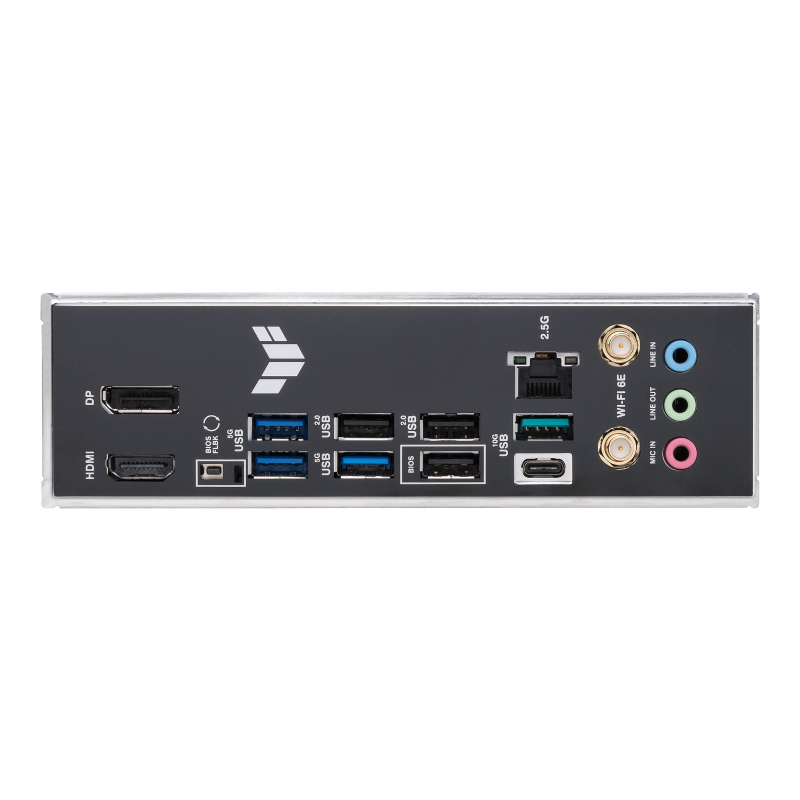

Back Panel I/O Ports
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C?)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI? port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x?BIOS FlashBack? button
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI? port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x?BIOS FlashBack? button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB?Type-C?)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x?USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB?Type-C?)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x?USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
Special Features
ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack? button
– BIOS FlashBack? LED
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync
– Aura RGB header(s)
– Addressable Gen 2 header(s)
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack? button
– BIOS FlashBack? LED
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync
– Aura RGB header(s)
– Addressable Gen 2 header(s)
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial?version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial?version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Operating System
Windows? 11
Windows? 10 64-bit
Windows? 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
