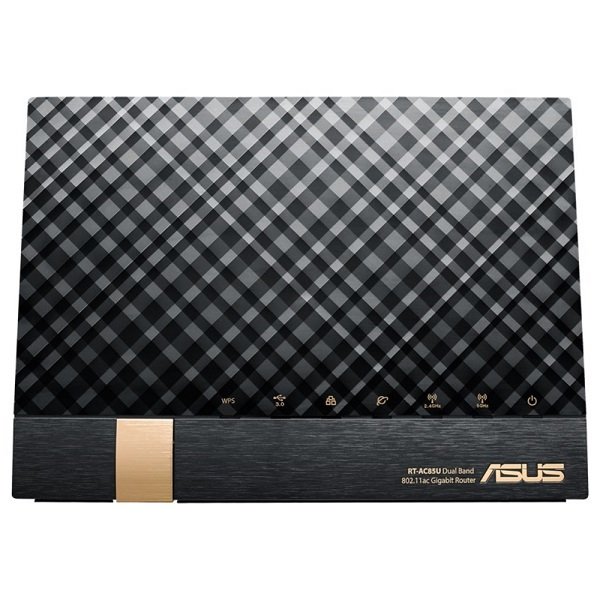

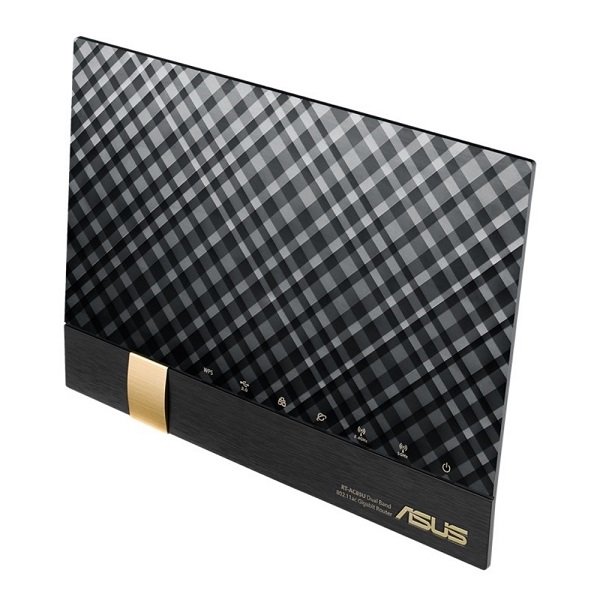

ASUS RT-AC85U Wireless-AC2600 Dual Band Gigabit Router
The ultra-thin and stylish RT-AC85U features a 2.4GHz and 5GHz dual bands for an unmatched concurrent wireless HD streaming; SMB server, UPnP AV server, and FTP server for 24/7 file sharing; a capability to handle 300,000 sessions; and the ASUS Green Network Technology, which provides up to 70% power-saving solution.
SPECIFICATIONS
-
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
-
Product Segment
AC2600 ultimate AC performance : 800+1734 Mbps
-
Coverage
Large homes
-
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n: up to 867 Mbps 802.11ac: up to 1734 Mbps
-
Antenna
Internal 2 dBi antenna x 4
-
Processor
MTK MT7621A 880MHz Dual Core
-
Memory
128 MB Flash 128 MB RAM
-
Operating Frequency
2.4 GHz / 5 GHz
-
Encryption
64-bit WEP, 128-bit WEP, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support
-
Management
DHCP, DDNS, System Event Log
-
Utilities
Router setup wizard, firmware restoration, device discovery, the printer setup utility
-
Ports
RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4 USB 3.0 x 1
-
Features
MU-MIMO SmartQoS – WMM – User-definable rules for IP/MAC/Port – Upload and download bandwidth management – ACK/SYN/FIN/RST/ICMP with the highest priority Parental Control Guest Network: 2.4 GHz x 3, 5 GHz x 3 VPN server: IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server VPN client : PPTP client, L2TP client, OpenVPN client AiCloud personal cloud service 3G/4G data sharing Printer Server – Multifunctional printer support (Windows only) – LPR protocol support Download Master – Support bt, nzb, http, ed2k – Support encryption, DHT, PEX and magnet link – Upload and download bandwidth control – Download scheduling AiDisk file server – Samba and FTP server with account management IPTV support Roaming Assist
-
Button
WPS Button, Reset Button, Power Button
-
LED Indicator
Power x 1 LAN x 1 USB x 2 Wi-Fi x 2 WAN x 1
-
Power Supply
AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 1.5 A current
-
OS Support
Windows® 10 Windows® 8.1 Windows® 8 Windows® 7 Windows® Vista Windows® 2000 Windows® XP Mac OS X 10.4 Mac OS X 10.5 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 Mac OS X 10.9 Mac OS X 10.10 Mac OS X 10.11 Linux Kernel (Support Ubuntu only) Linux
-
Environmental
Operating Temperature: 0 °C to 40 °C ( °F to ºF) Storage Temperature: -20 ° to 80 ° C ( °F to °F) Operating Humidity: 0 % to 90 % (Non-condensing) Storage Humidity: 0 % to 95 % (Non-condensing)
