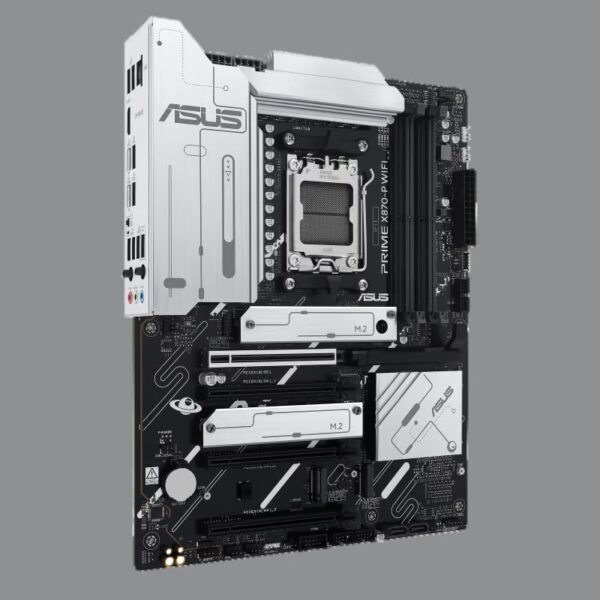

Asus PRIME X870-P WIFI-CSM 90MB1IS0-M0UAYC
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen? 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It?s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
SPECIFICATIONS
Model : PRIME X870-P WIFI-CSM
CPU : AMD Socket AM5 for AMD Ryzen? 9000 & 8000 & 7000 Series Desktop Processors*
Chipset : AMD X870 Chipset
Memory : 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen? 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO?)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of
Graphics : 1 x HDMI? port**
2 x USB4? (40Gbps) ports support USB Type-C? display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
*** VGA resolution support depends on processors? or graphic cards? resolution.
Storage : Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen? 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen? 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***
2 x SATA 6Gb/s ports***
* PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
*** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
AMD RAIDXpert2 Technology
Ryzen? 9000 Series Processors: RAID 0/1/5/10
Ryzen? 8000 Series Processors: RAID 0/1
Ryzen? 7000 Series Processors: RAID 0/1/10
Ethernet : 1 x Realtek 2.5Gb Ethernet
