PH-RX550-4G-EVO
Phoenix graphics cards pack as much performance as possible into a compact design that offers a wide range of compatibility with small chassis. Limited space begs an efficient cooling system, and the Phoenix Radeon? RX 550 delivers with a fan that sports dual ball bearings and is certified for IP5X dust resistance. Whether you’re upgrading an outdated card or building your first gaming rig, the Phoenix is a potent package that delivers latest-gen performance.
SPECIFICATIONS
Model
PH-RX550-4G-EVO
Graphic Engine
AMD Radeon RX 550
Bus Standard
PCI Express 3.0
OpenGL
OpenGL?4.5
Video Memory
4GB GDDR5
Engine Clock
1183 MHz
Stream Processors
512
Memory Speed
6000 MHz
Memory Interface
128-bit
Resolution
Digital Max Resolution 5120 x 2880

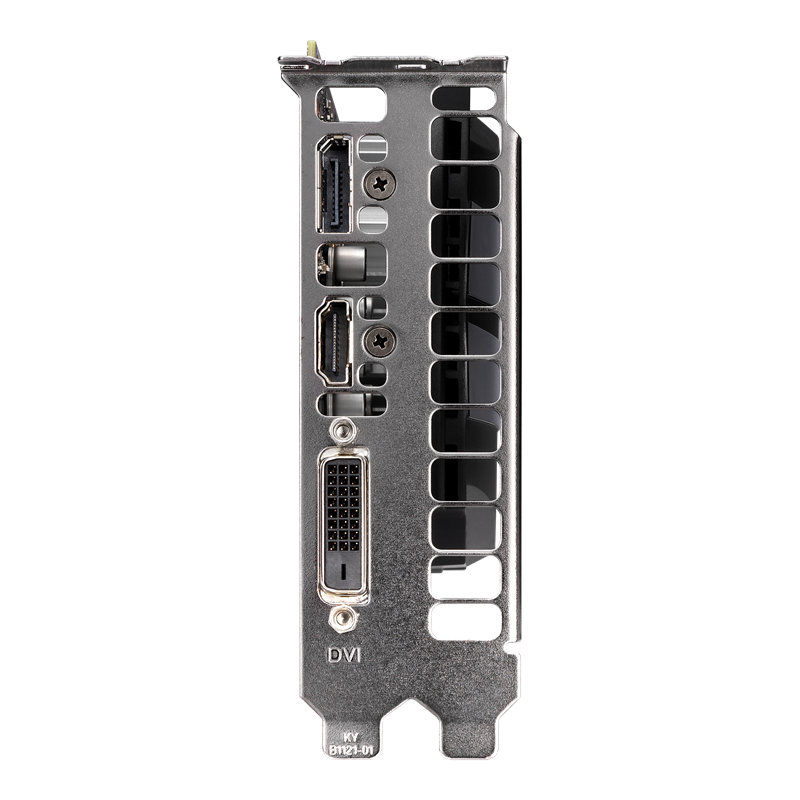

Interface
Yes x 1 (Native DVI-D)
Yes x 1 (Native HDMI 2.0b)
Yes x 1 (Native DisplayPort 1.4)
HDCP Support Yes (2.2)
Yes x 1 (Native HDMI 2.0b)
Yes x 1 (Native DisplayPort 1.4)
HDCP Support Yes (2.2)
Maximum Display Support
3
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup manual
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
19.2 x 11.5 x 3.9 cm
7.6 x 4.5 x 1.5 inch
7.6 x 4.5 x 1.5 inch
Recommended PSU
350W
Power Connectors
No
Slot
2 Slot
