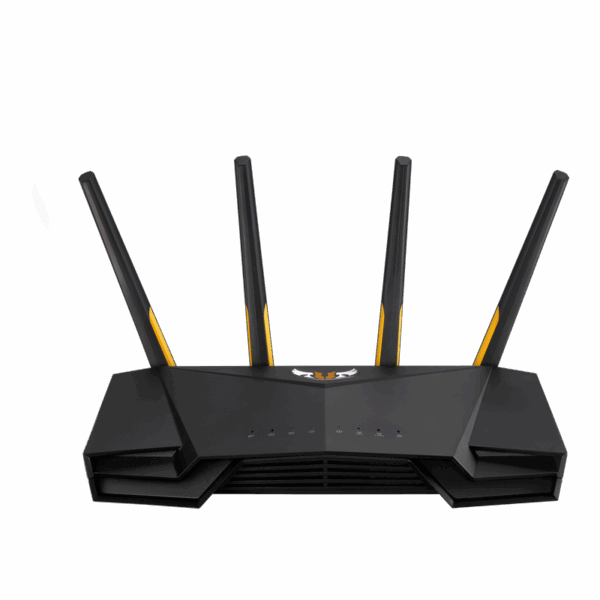

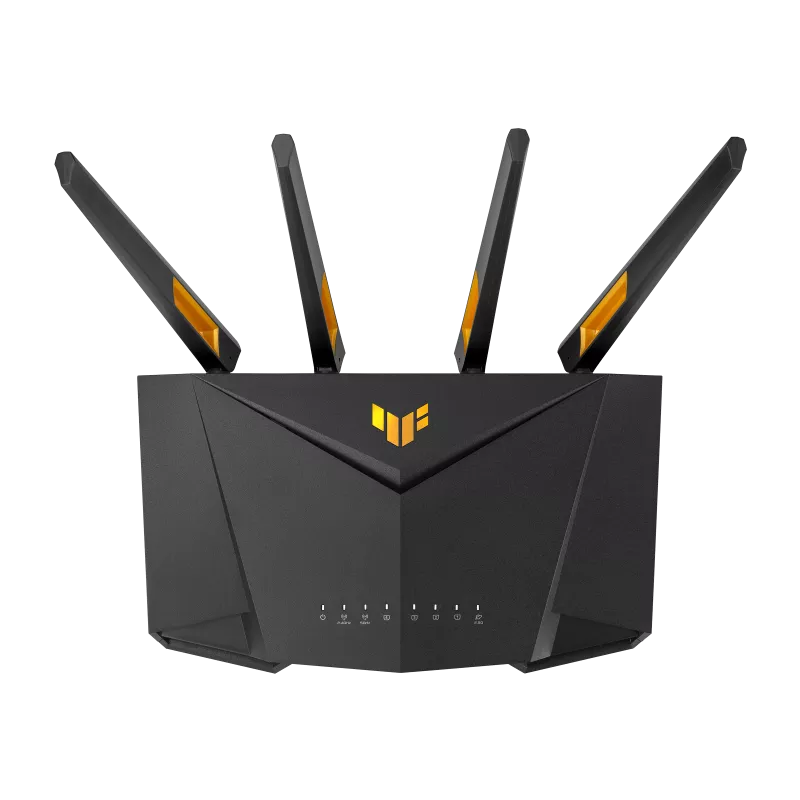

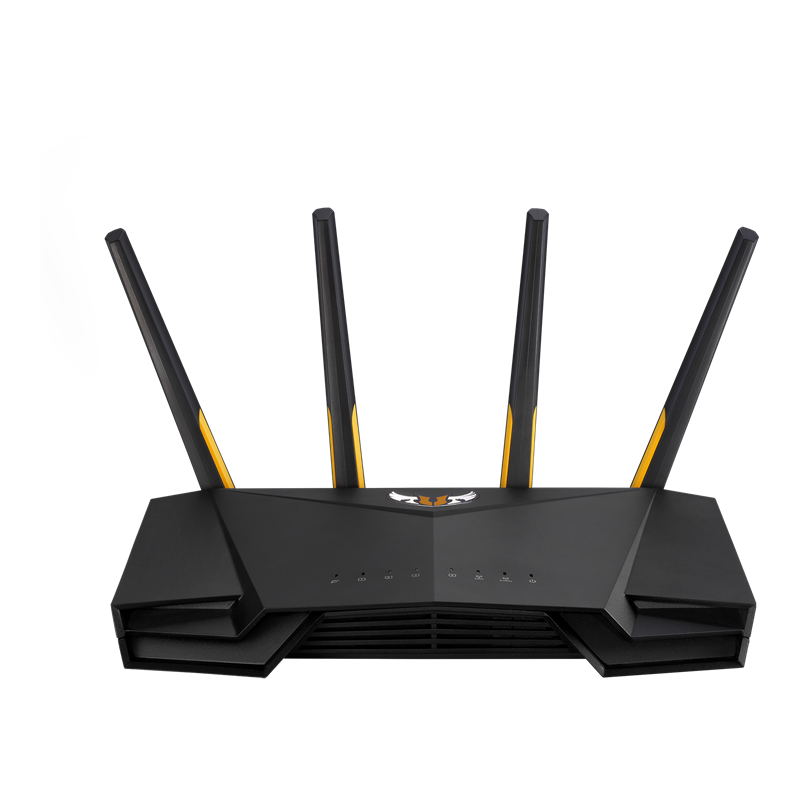

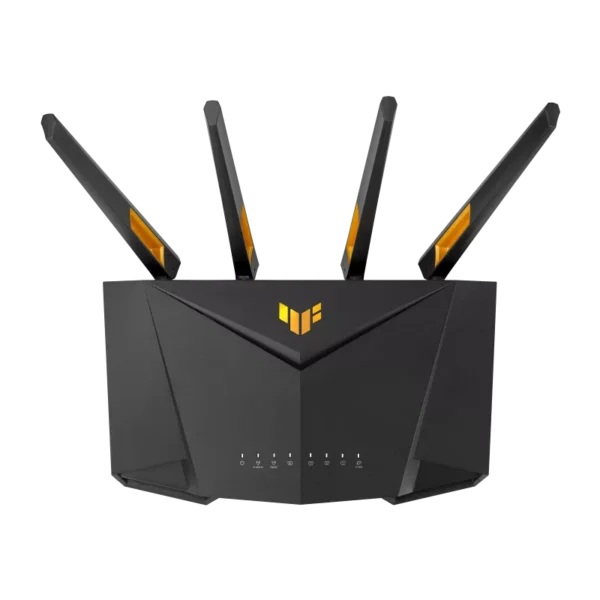

ASUS TUF Gaming AX3000 Dual Band WiFi
- Next-Gen WiFi 6 – The WiFi 6 (802.11ax) standard delivers better efficiency and throughput.
- Gaming Port Acceleration —Wired connection speeds up your game via a dedicated gaming LAN port.
- Easy Port Forwarding in 3 Steps – Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration.
- Better Partner with Mesh System – Compatible with the ASUS AiMesh Wi-Fi system for seamless whole-home coverage.
- Tested durability and stable operation – TUF Gaming AX3000 is built to be durable and undergoes verified testing to ensure reliable, stable operation.
SPECIFICATIONS
| Model | TUF Gaming AX3000 V2 (TUF-AX3000 V2) |
| Network Standard | IEEE 802.11a
IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps |
| WiFi Data Rate | 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 867 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps |
| Antenna | External antenna x 4 |
| Transmit / Receive | 2.4GHz 2×2
5GHz 2×2 |
| Processor | 1.7GHz quad-core processor |
| Memory | 256 MB Flash
512 MB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4GHz / 5GHz |
| Operating Mode | Wireless router mode
Access point mode Media bridge mode Repeater mode AiMesh node mode |

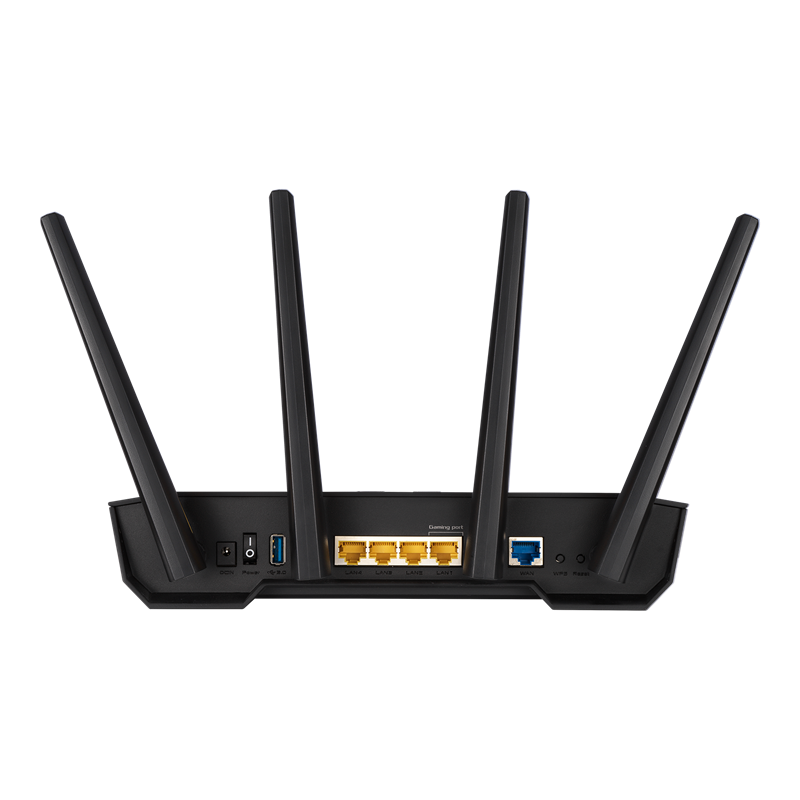

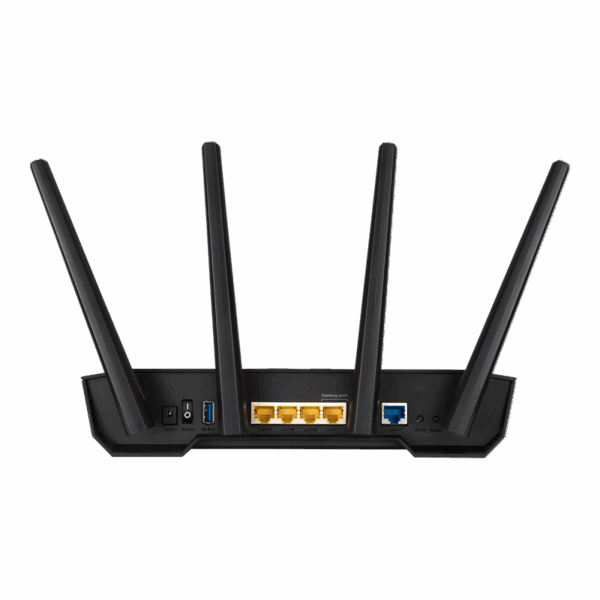

| I/O Ports | RJ45 for 2.5 Gigabits BaseT for WAN x 1,
RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, |
| Buttons | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1
2.4G x 1 5G x 1 LAN x 4 WAN x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 1.5 A current |
| Package Content | TUF Gaming AX3000 V2 Dual Band WiFi 6 router
RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 547 g |
| Product Dimensions | 256 x 178 x 186 mm |
| AiMesh | AiMesh
• Primary AiMesh Router • AiMesh Node |
| Game | Game Boost / Acceleration
Mobile Game Mode Gear Accelerator |
| Parental Control | “Allow you to block access to unwanted websites and apps.”
Safe Browsing Customized Internet Schedule |
| Guest Network | “The Guest Network provides Internet connection for guests but restricts access to your local network.”
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit |
| Security | AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection | • Router Security Assessment
• Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | VPN Client L2TP
VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control | Adaptive QoS
• Bandwidth Monitor • Bandwidth Limiter — Maximum Bandwidth Limiter Rule : 32 Traditional QoS — Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN | DHCP Server
IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
| Wireless | UTF-8 SSID
WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
