🛍️ Product Name

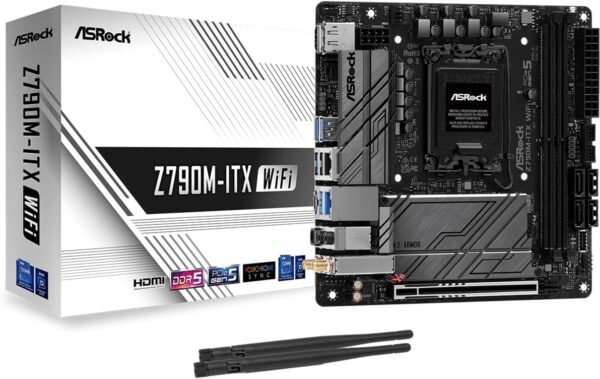

ASRock Z790M-ITX WiFi D5 – Model 90-MXBKE0-A0UAYZ, Mini-ITX Motherboard with Intel Z790 Chipset, DDR5, PCIe 5.0, Gen4 M.2, Wi-Fi 6E, and USB 3.2 Gen2x2
📦 Product Overview
The ASRock Z790M-ITX WiFi D5 is a compact Mini-ITX motherboard designed for Intel 12th, 13th, and 14th Gen Core processors. It supports DDR5 memory, PCIe 5.0 graphics, and dual Gen4 M.2 slots for high-speed storage. With dual LAN, Wi-Fi 6E, and extensive USB connectivity, this board is ideal for small form factor builds that demand elite performance and modern features.
🌟 Top Highlights
⚡ PCIe 5.0 x16 Slot – Full bandwidth for next-gen GPUs
🧠 DDR5 Memory Support – Up to 7000+ MHz (OC) in dual channel
🚀 Dual Hyper M.2 Gen4 – High-speed NVMe SSD performance
📶 Wi-Fi 6E + Bluetooth 5.3 – Seamless wireless connectivity
🔌 USB 3.2 Gen2x2 Type-C – High-speed front and rear access
📐 Technical Details
| Specification | Details |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | Intel Z790 |
| CPU Support | Intel 14th / 13th / 12th Gen Core Processors (LGA1700) |
| Memory | 2x DDR5 DIMMs, Dual Channel, up to 7000+ MHz (OC) |
| Expansion Slots | 1x PCIe 5.0 x16 |
| Storage | 1x Hyper M.2 (Gen4x4), 1x Hyper M.2 (Gen4x4 & SATA3), 4x SATA3 |
| Graphics Output | 1x HDMI, 1x DisplayPort, 1x eDP |
| Audio | Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio |
| LAN | Intel 2.5G LAN + Intel 1G LAN |
| Wireless | 802.11ax Wi-Fi 6E + Bluetooth 5.3 |
| USB Ports | 1x USB 3.2 Gen2x2 Type-C (Front), 1x USB 3.2 Gen2x2 Type-C (Rear), 4x USB 3.2 Gen2 Type-A (Rear), 2x USB 3.2 Gen1 (Front), 3x USB 2.0 (1 Rear, 2 Front) |
| Power Design | 7+1+1 Phase, Dr.MOS |
💡 Why You Should Buy It
✅ Mini-ITX form with full PCIe 5.0 and DDR5
✅ Dual LAN and Wi-Fi 6E for flexible networking
✅ Dual Gen4 M.2 slots for fast storage
✅ Ideal for compact, high-performance Intel builds
🎯 Recommended Use Cases
➤ Small form factor gaming PCs
➤ Portable creator workstations
➤ High-speed home media centers
➤ Compact enthusiast builds
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Choose ASRock Z790M-ITX WiFi D5 for a compact Intel platform with elite connectivity, storage, and performance features.
