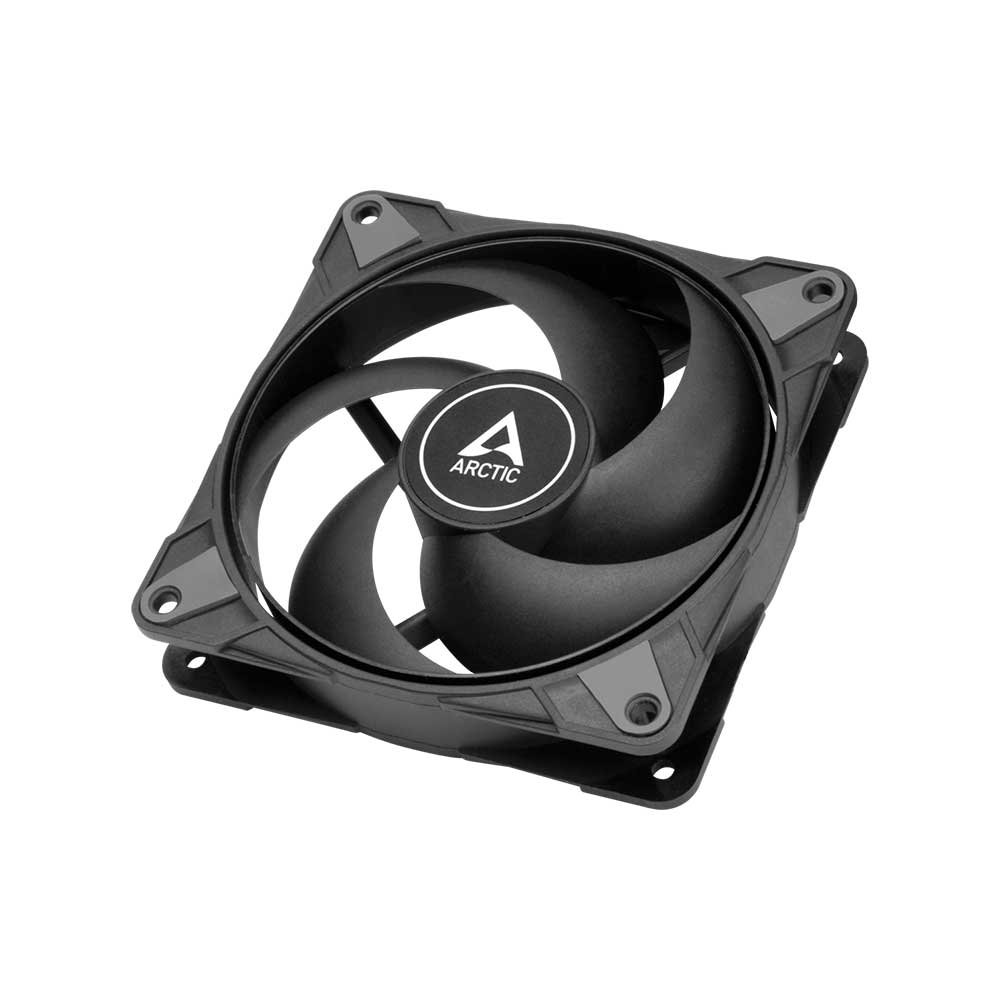

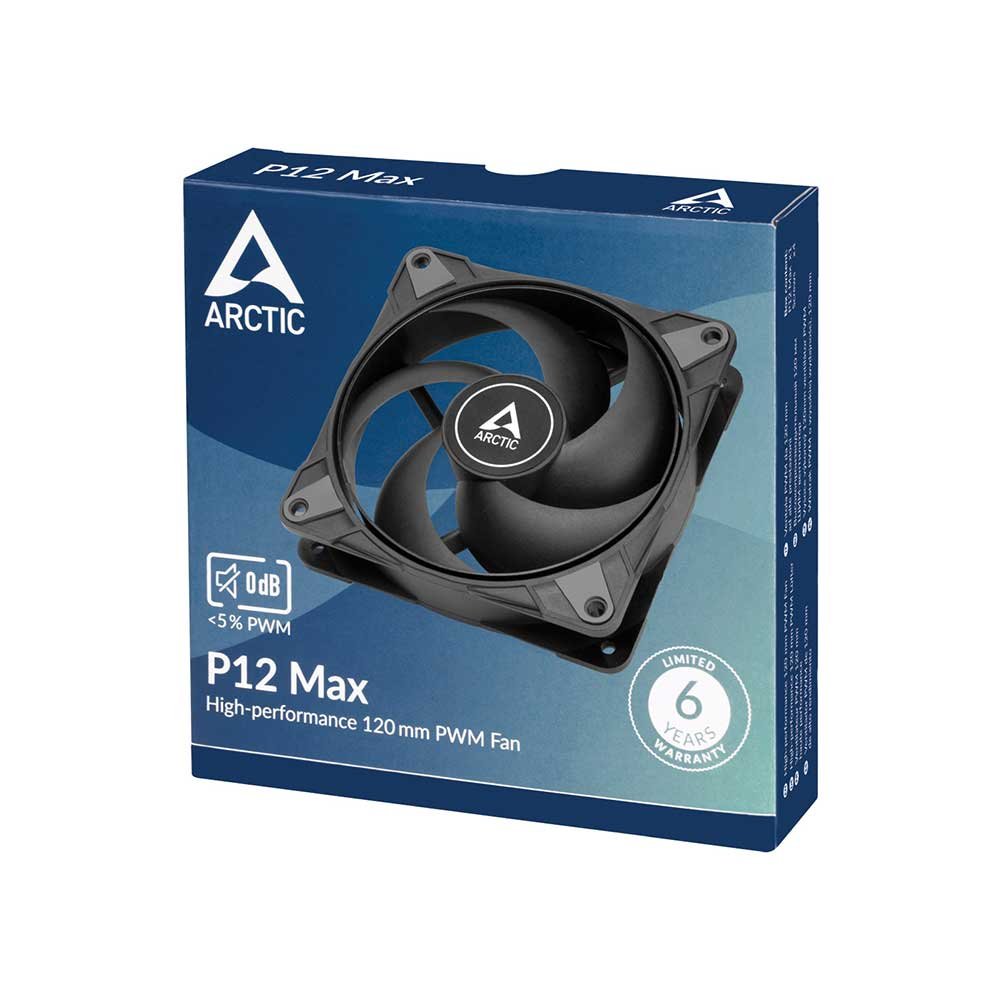

ARCTIC P12 Max PWM (Black)-ACFAN00280A
‘The ARCTIC P12 Max PWM (Black) is a high-performance 120mm case fan designed for optimal airflow and static pressure. It features a wide PWM-controlled speed range, allowing for silent operation during low loads and powerful cooling when needed. The fan’s fluid dynamic bearing ensures longevity and quiet performance, while the 0 dB mode enables the fan to stop completely when not needed, reducing noise and power consumption. Its compact size makes it ideal for use in small form factor cases and other space-constrained environments.
SPECIFICATIONS
-
Model Number: ACFAN00280A
-
Fan Size: 120 x 120 x 25 mm
-
Bearing Type: Fluid Dynamic Bearing
-
Speed Range: 400–3300 RPM (PWM controlled)
-
Airflow: 81.04 CFM (137.69 m³/h)
-
Static Pressure: 4.35 mm H₂O
-
Noise Level: 0.6 Sone
-
Connector: 4-Pin PWM
-
Cable Length: 400 mm
-
Voltage: 12V DC
-
Current: 0.29A
