LIGHT UP YOUR BUILD

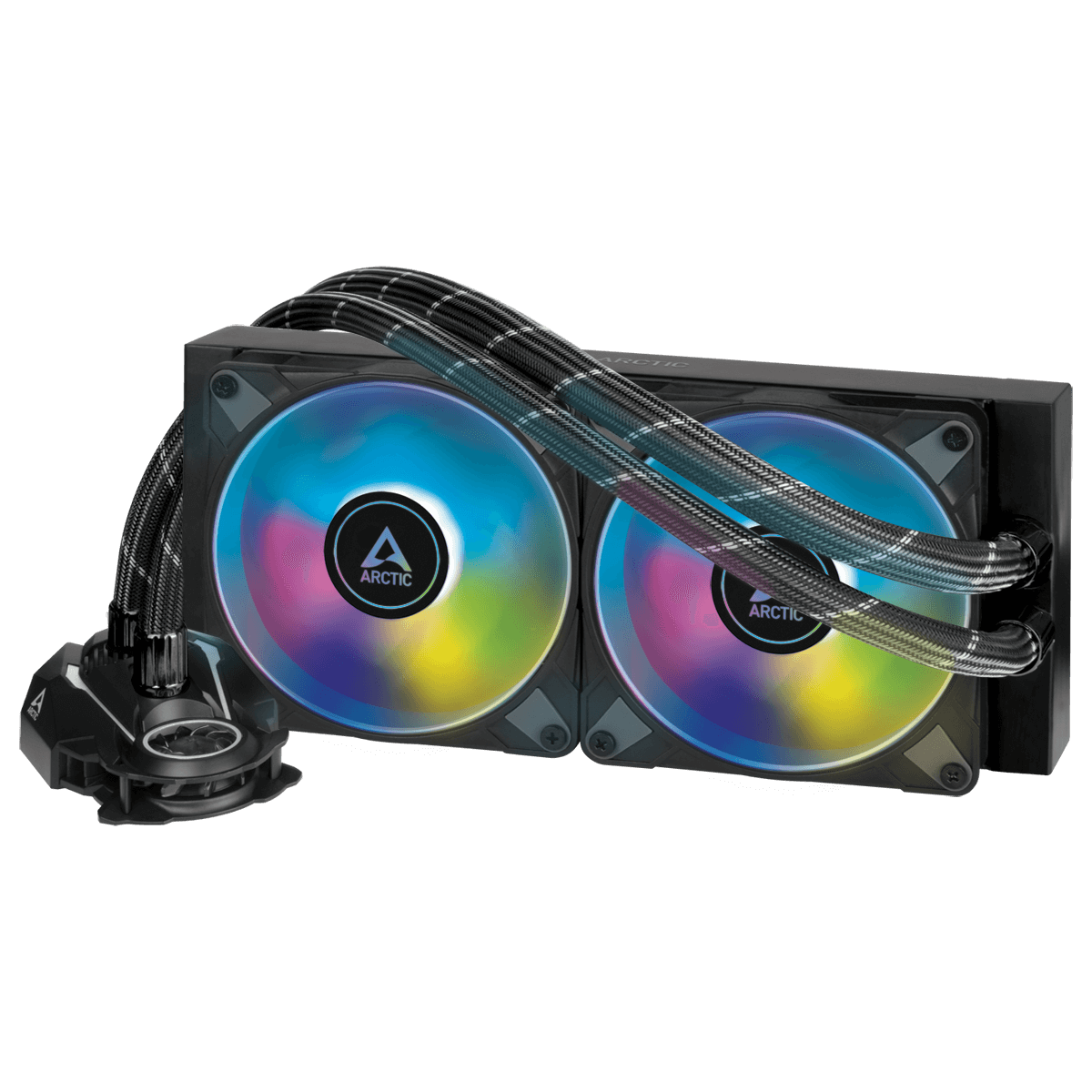

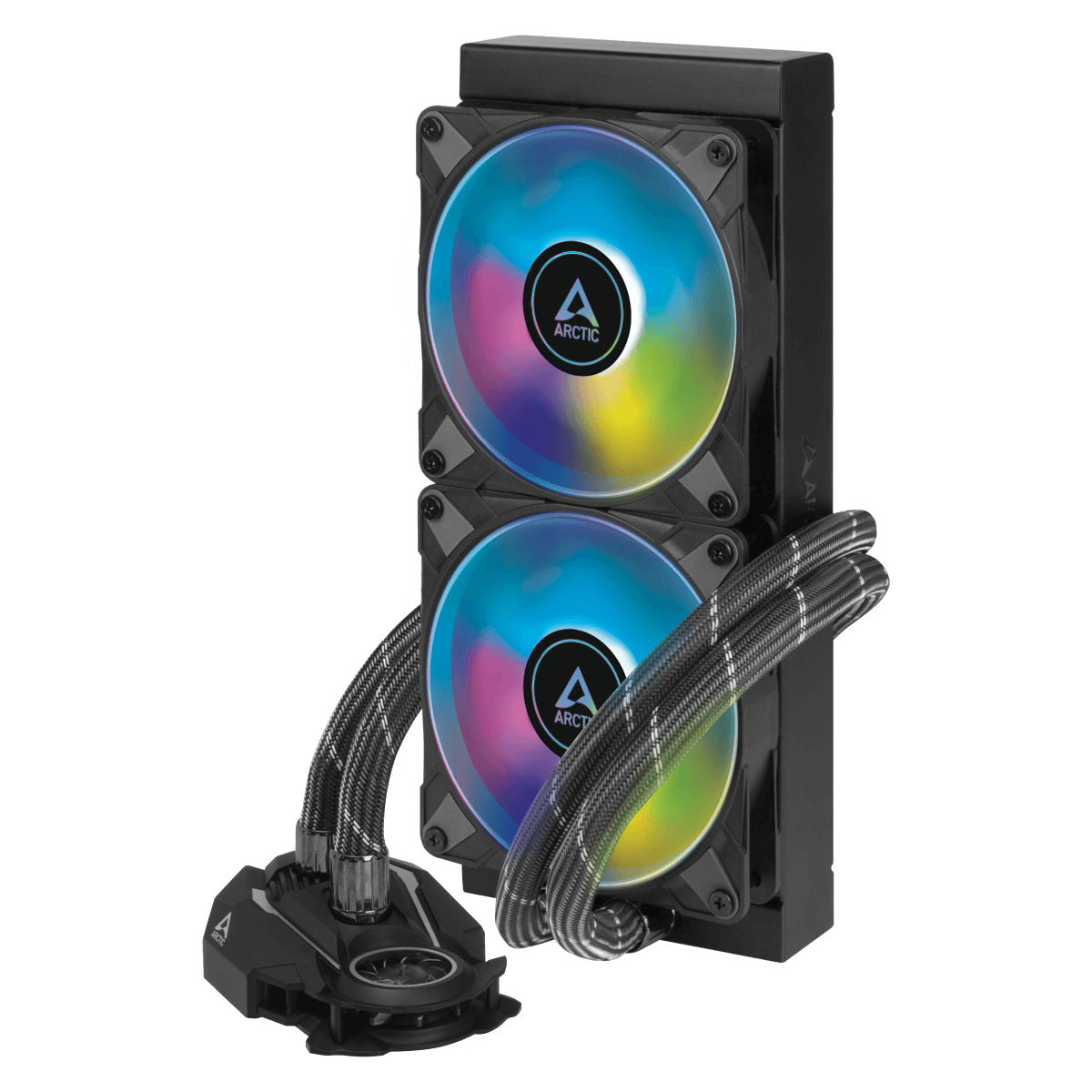

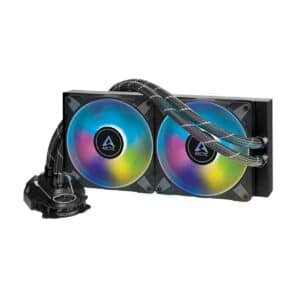

The Liquid Freezer II A-RGB combines the efficient, award-winning PWM pump of the Liquid Freezer II with new A-RGB fans optimised for static pressure. This gives you a whole new aesthetic with extremely low noise and equally low temperatures.
EFFICIENT, IN-HOUSE DEVELOPED PUMP
Unlike many of our competitors, we went to great lengths to develop the water pump. The result is greatly reduced humming and higher efficiency. Like the other components, the pump is also PWM controlled. This leads to a significantly lower noise level at low and typical loads, but also to much lower power consumption, with a maximum of of 0.8 W at no load, 2.3 W under normal load and a maximum of 4.8 W under full load for the entire AiO.
PREMIUM CLASS RADIATOR
Unlike most other all-in-one liquid cooling manufacturers, we rely on 38 mm thick radiators with a high fin density. This means that a larger amount of water can be used in the circuit, and the cooling surface can be significantly increased.
Water has a much higher heat capacity than aluminum or copper. This leads to a slower and up to 5 ° C lower temperature increase in the temporary turbo mode of modern CPUs.
• High static pressure for improved cooling performance |1.85 mm H2O
• Extended speed range | 200 – 2000 rpm (1800 rpm on the radiator)
• Low power consumption | 0.11A (0.2A RGB)
• Less vibration and rubber bumpers | reduced by > 95%
• Improved lifetime | 6 years warranty
• High quality plain bearing
• PWM for synchronous pump/fan control
• RGB sharing for synchronous lighting
SPECIFICATIONS
| Compatibility | |
| Intel Socket | 1700 (Kit available), 1200, 115X, 2011-3*, 2066* *Square ILM |
| AMD Socket | AM4 |
| RAM Clearance | Unlimited |
| Operating Ambient Temperature | 0 – 40 °C |
| Connector | Cooler: 4 pin PWM Connector LEDs: 4-pin 12V-G-R-B Connector with Y-Splitter |
| Pump / Cold Plate | |
| VRM Fan | 40 mm, 1000 – 3000 RPM (PWM controlled) |
| Pump | 800 – 2000 RPM (PWM controlled) |
| Power Consumption | 0,5 W – 2,7 W (Pump + VRM Fan) |
| Cold Plate | Copper, Micro-Skived-Fins |
| Thermal Paste | MX-5 (0,8 g) |
| Fan | |
| Fan | 2x ARCTIC P12 PWM A-RGB – 120 mm Fan |
| Fan Speed | 200 – 1800 RPM |
| Fan Bearing | Fluid Dynamic Bearing |
| Noise Level | 0.3 Sone |
| Voltage / Current | 0.08 A / 12 V DC |
| Airflow | 48.8 CFM |
| Static Pressure | 1.85 mm H2O |
| Connector | 4 pin Connector |
| RGB | |
| LEDs | 12 A-RGB LEDs per Fan |
| Connector | 3 pin 5 V-DI-Gnd |
| Current / Voltage | 0.4 A/ 5 V |
| Size & Weight | |
| Radiator | 277 x 120 x 38 mm |
| Pump | 98 mm x 78 mm x 53 mm |
| Tube Diameter | Outer: 12,4 mm // Inner: 6,0 mm |
| Tube Length | 450mm |
| Weight | 1213 g (Fan, Radiator, Pump, Tubes) |
| Warranty | 6 Years |
