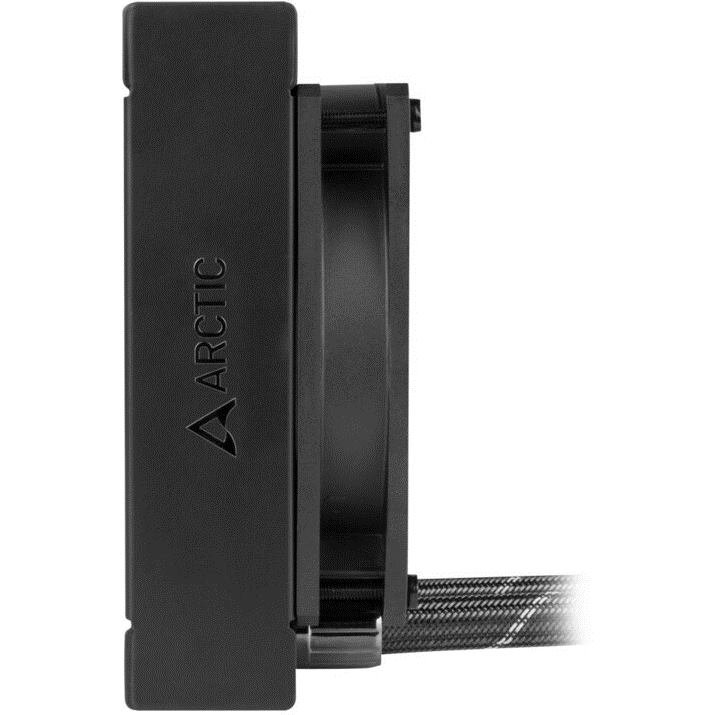

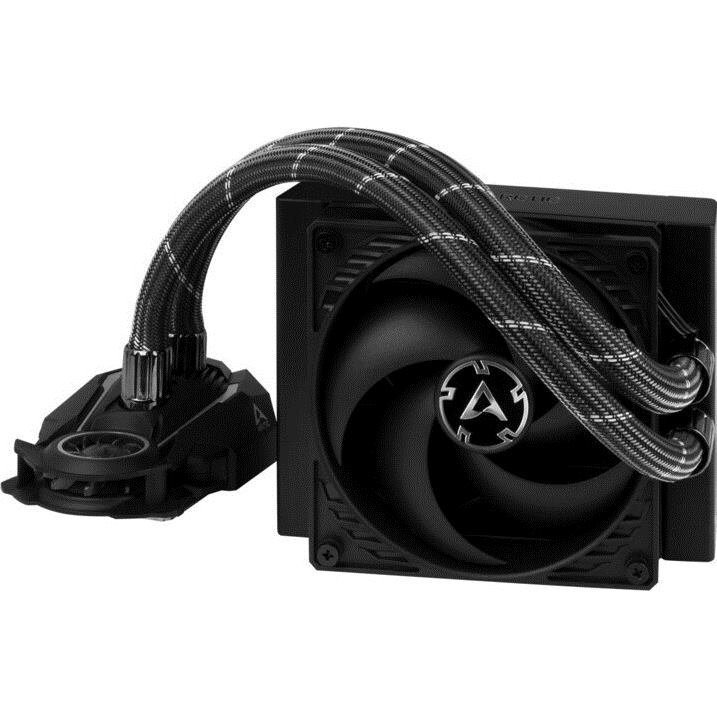

ARCTIC Liquid Freezer II – 120 LZD-ACFRE00067A LIQUID COOELR
- NEWLY DEVELOPED PWM-CONTROLLED PUMP: The Liquid Freezer II features a completely new, PWM-controlled pump with a copper base, improved efficiency, low power usage, and quiet operation.
- IMPROVED POWER EFFICIENCY: Unlike most pumps from our competitors, which run at full load even when idle, our pump clocks down consuming less power and producing less noise if no cooling is needed, even with its additional fan for VRM cooling.
- MOTHERBOARD VRM COOLING FAN: An additional 40 mm fan next to the pump helps cooling the motherboards VRM chips. This prevents overheating, especially when overclocking and allows continous heavy loads.
- MAINTENANCE-FREE WATER LOOP: The water loop is sealed, therefore no water or additives have to be refilled
- INTEGRATED CABLE MANAGEMENT: The PWM-cable of the fan is integrated into the sleeveless tubing. Thus fewer cables are exposed for a clean and sleek look within your case
FEATURES
• High static pressure for increased cooling performance
• Broad RPM range
• Lower power consumption
• Less vibrations
• Extended life span
• High-quality bearing
• PWM for synchronous fan/pump control
SPECIFICATIONS
| Pump/Cold Plate | |
| VRM Fan | 40 mm, 1000 – 3000 RPM (Controlled by PWM) |
| Pump | 800 – 2000 RPM (Controlled by PWM) |
| Power Consumption | 1.0 W – 2.7 W (Pump and VRM Fan) |
| Cold Plate | Copper, Micro Skived Fin |
| Tube Length | 350 mm |
| Tube Diameter | Outer: 12.4 mm, Inner: 6.0 mm |
| Dimensions (w/o tubes) | 98 mm x 78 mm x 53 mm |
| Fan | |
| Fan Speed | 200 – 1800 RPM (Controlled via PWM) |
| Airflow | 56.3 CFM |
| Static Pressure | 2.2mm H2O |
| Current/Voltage | 0.08 A / 12 V DC |
| Bearing | Fluid Dynamic Bearing |
| Noise Level | 0.3 Sone |
| Connector | 4-pin-Connector |
| Dimensions | 120 mm x 120 mm x 25 mm |
| General | |
| Socket Compatibility | Intel™ 115X, 2011-3*, 2066* *Square ILM AMD™ AM4 |
| Thermal Compound | MX-4 (0.8 g) |
| Total Weight | 932 g (Fan, Radiator, Pump, Tubes) |
| Radiator | |
| Material | Aluminum |
| Dimensions | 157 x 120 x 38 mm |
