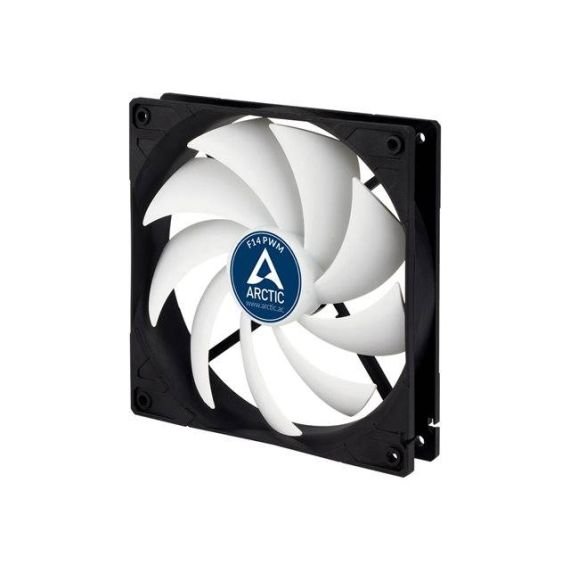

ARCTIC F14 PWM
The ARCTIC F PWM forward the PWM signal from the CPU to the whole case ventilation system. The entire system is cooled quietly, but still offers the superb performance when needed.
ARCTIC F14 PWM / Case fan | ACFAN00218A
Special Features
- Versatile applicable
- Silent operation
- Quick and easy setup
Product features
- Versatile applicable
With the standard 25 mm frame, the ARCTIC F PWM can be applied as intake or outtake system fan. - Silent operation
Thanks to fluid dynamic bearing and the patented fan holder design, the ARCTIC F PWM is not only quiet, but also highly durable. - Quick and easy setup
Via the PWM signal, the CPU fan is controlled by the mainboard to reach the ideal temperature for the CPU. The patented PST (PWM Sharing Technology) is forwarding the PWM signal to all other fans inside the system. This way, all fans are spinning at the same speed. This provides silent operation in idle mode, but also gives sufficient performance, when required to offer efficient cooling.
SPECIFICATIONS
| Product Type | Case fan |
| Width | 14 cm |
| Depth | 14 cm |
| Height | 2.7 cm |
| Weight | 180 g |
| Shipping Dimensions (WxDxH) / Weight | 14.3 cm x 14.3 cm x 2.9 cm / 220 g |
| Image Colour Disclaimer | The displayed product image may be a different colour |
| Fan Diameter | 140 mm |
| Fan Height | 16 mm |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 200-1350 rpm |
| Air Flow | 74 cfm |
| Noise Level | 0.3 Sone |
| Power Connector | 4-pin fan connector |
| Operation Voltage | 6 – 12 V |
| Start Voltage | 6 V |
| Rated Current | 0.11 A |
| Features | Pulse-width modulation (PWM) support |
| Service & Support | Limited warranty – 10 years |
